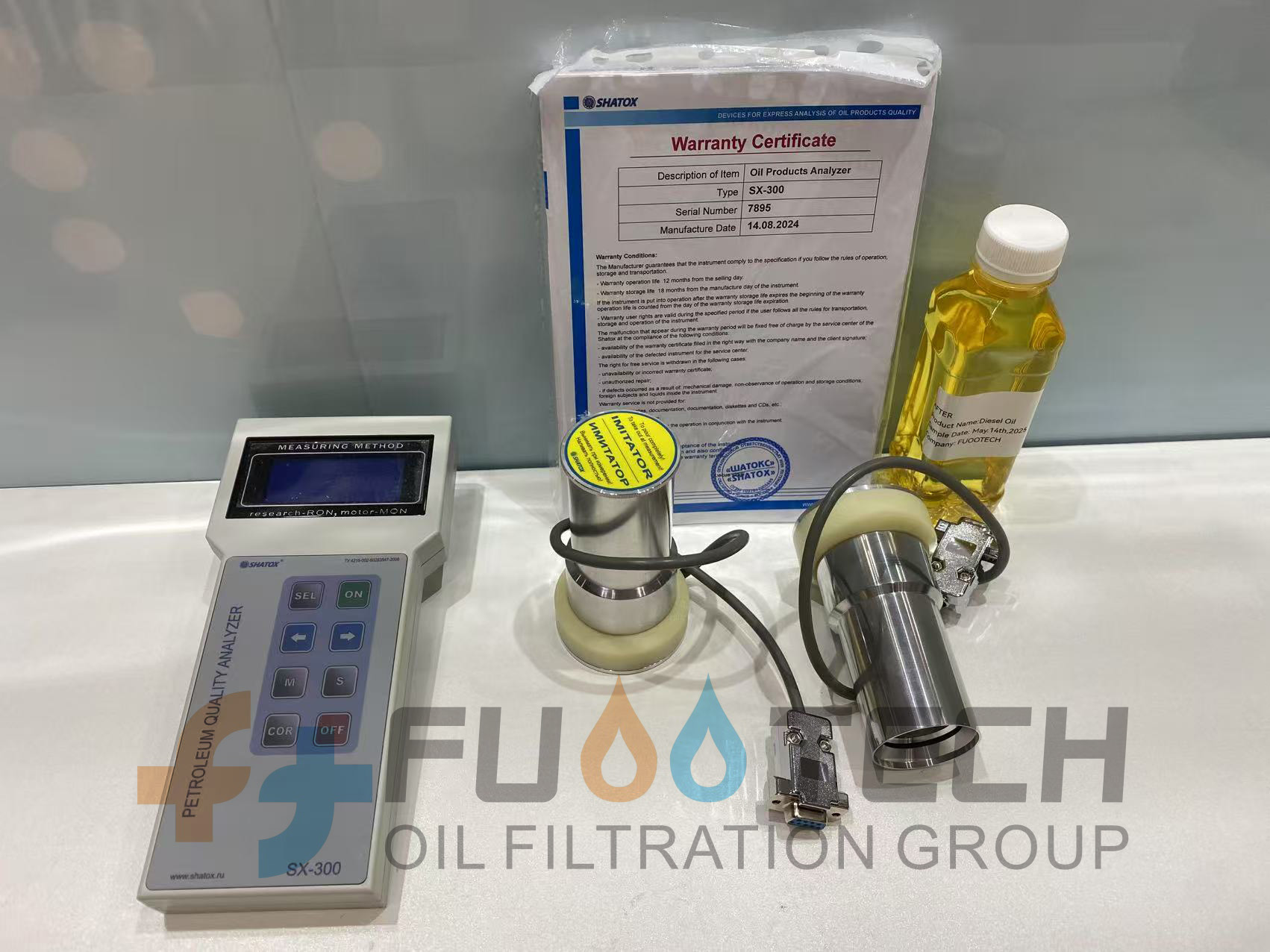

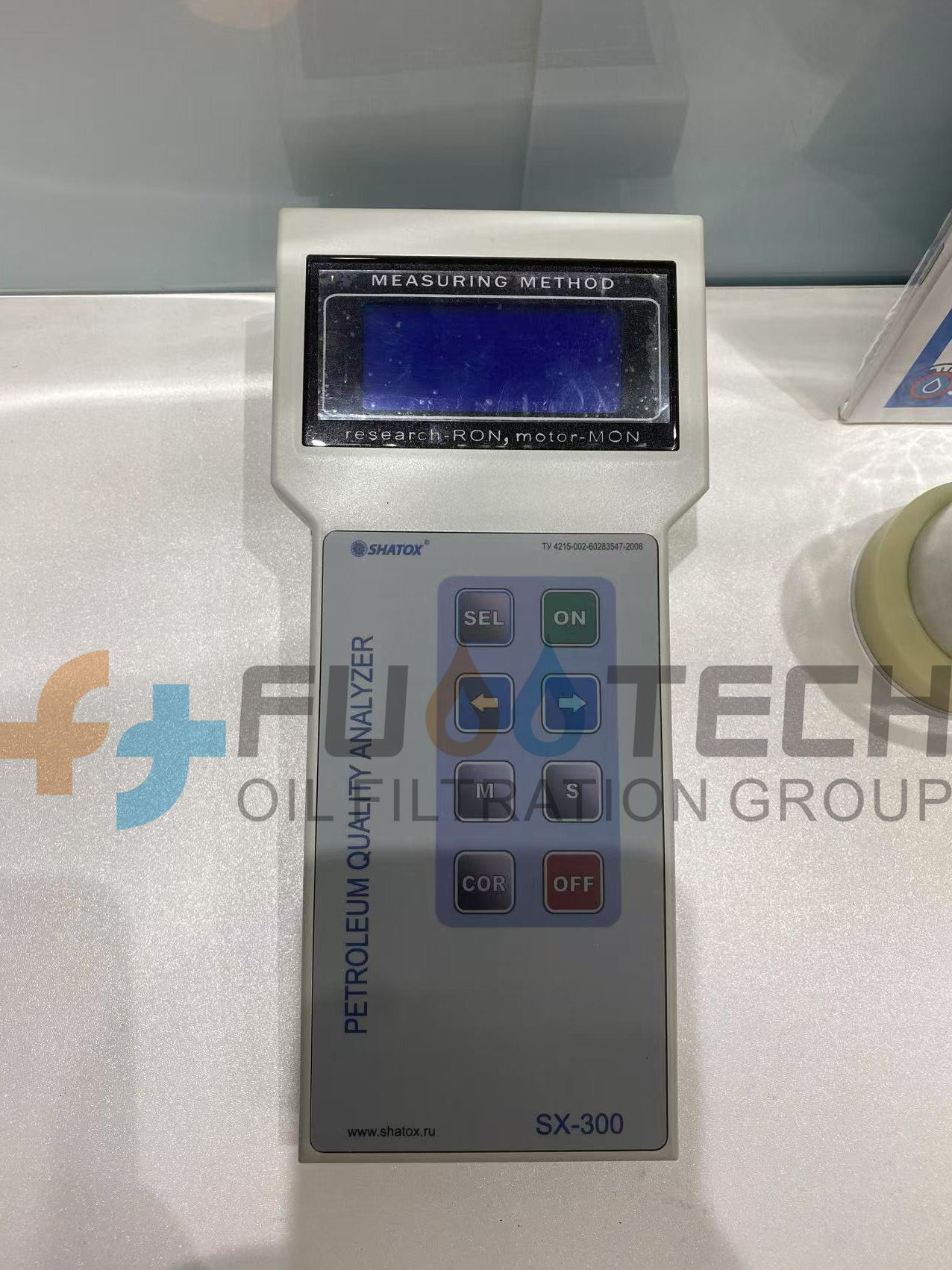

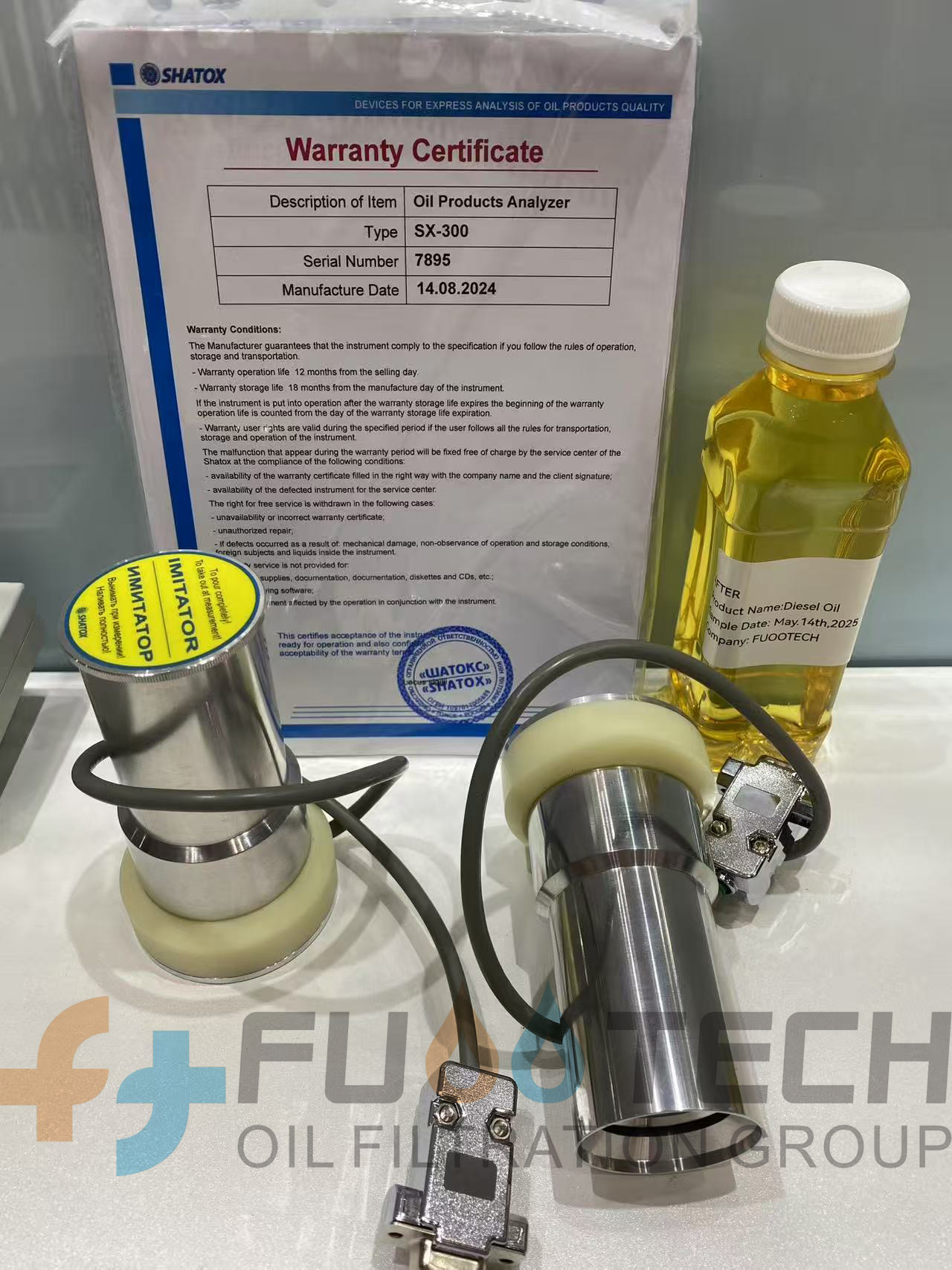

SX-300 Portable Octane and Cetane Analyzer are often used for on-site analysis of octane number of power gasoline, motor gasoline, corresponding to the motor method and research method (RON and MON), as wll as suitable for cetane number analysis of diesel fuels. In addition, the temperature of the analyzed liquid and the freezing point of diesel fuel can also be measured. The measuring results are displayed on the LCD liquid crystal display.
Performance
Determining octane numbers for automotive gasoline, according to the standards of ASTM D 2699-86, ASTM D 2700-86;
Determining cetane numbers for automotive gasoline, according to the standards of ASTM D4737-03, ASTM D 613, EN ISO 5165;
Determinating diesel freezing point;
Determining solidification temperature and diesel fuel type; Content of pour-point depressants for diesel fuels;
Content of kerosine in diesel fuel;
Petrol breakdown time (oxidation resistance) according to the standard of ASTM D 525;
Product Parameters
| Item | Unit | Value |
| Model | SX-300 | |
| Types of controlled fuel | all types of gasoline | |
| Gasoline octane number range | ON | 40-120 |
| Gasoline octane number measurement accuracy | ON | ± 0.5 |
| Gasoline stability measurement range | min. | 50-2400 |
| Maximum acceptable basic error of gasoline oxidation degradation time measurement | % | 5 |
| Cetane number measurement range | CN | 20-100 |
| Measurement accuracy of diesel cetane number | CN | ±1.0 |
| Maximum acceptable error of diesel fuel freezing point measurement | C o | ± 2 |
| Measurement of kerosene content in diesel fuel | % | 0-95 |
| Measurement mode of pour point depressant content in diesel | % | 3 |
| Maximum acceptable error in measurement of kerosene content in diesel fuel | % | 0.2-1 |
| Maximum acceptable error of pour point depressant content measurement | % | 0.01 |
| Measure time | s | 1-5 |
| Minimum power supply for instrument operation | V | 5.4 |
| Instrument service life | Year | 6 |
| Total size: | ||
| Electronic unit | mm | 100х210х40 |
| Sensor | mm | 60х100 |
| Instrument weight(including 1 sensor) | g | 850 |
