Oil Tester

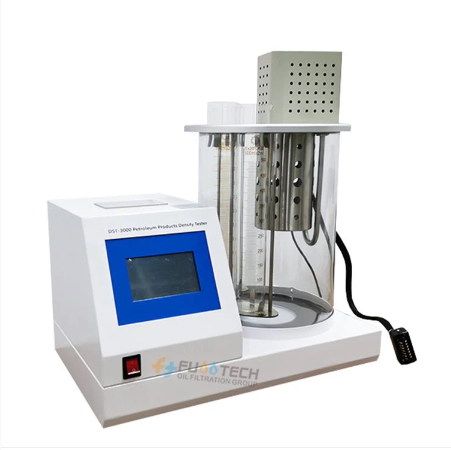

DST-2000 Portable Digital Petroleum Products Oil Density Testing Equipment

  • QQ:1227182945
  • Phone: WA +86 18984259103
  • Tel: WA +86 18984259103
  • Email: sales05@fuootech.com
  • Time: 2025-09-29 16:19:09

Product Description


FUOOTECH ASTM D1298 DST-2000 Portable Digital Petroleum Products Oil Density Testing Equipment


FUOOTECH's ISO & CE certified Model DST-2000 Portable Digital Petroleum Products Oil Density Testing Equipment for liquid petroleum products is designed and made as per national standard GB/T 1884-2000 "Test Methods for Density of Petroleum and Liquid Petroleum Products (Densimeter methods)" and ASTM D1298: Standard Test Method for Density, Relative Density, or API Gravity of Crude Petroleum and Liquid Petroleum Products by Hydrometer Method.

This Oil Densitometer is widely applied to determine the density of liquid petroleum products such as lubricating oil, hydraulic oil, diesel fuel, transformer oil etc.

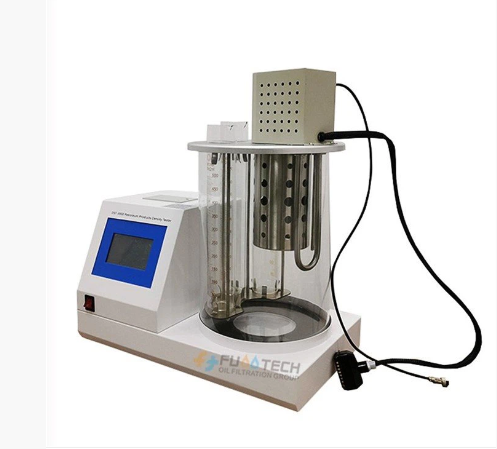

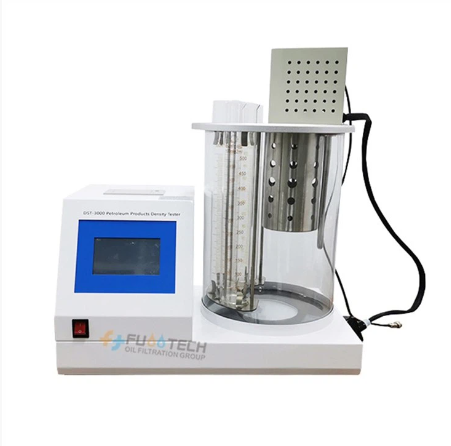

Detailed Photos



 Features

1.This series of new constant temperature liquid density meter, thermostatic system and density measurement system are integrated, using Archimedes principle and precision electronic measurement technology, and advanced electronic constant temperature technology to achieve fast and accurate measurement of liquid density at specific temperatures. It comply with ASTM D4052 ;

2.The density measurement system of this series adopts German imported sensor with high precision and good stability;
3.The measuring frame adopts high temperature resistant high strength material, open structure design, guarantees the stability of density measurement system and the convenience of taking samples; and cleaning measurement The convenience of the cup;
4.the constant temperature system is combined with the Japanese imported temperature control system and the PT100 temperature sensor. It has a wide temperature range, and can be set freely in the range of 10ºC ~ 50ºC. The constant temperature accuracy is 0.1ºC; the whole machine has a constant temperature;
5. Fast speed, high precision and good durability; suitable for quality management, formulation development, cost control and other applications.


Technical Parameters



Power supplyAC 220V±10%, 50 Hz (Customizable)
Bath sizeInner Dia:300 mm*340 mm
Testing tube500 ml,1000ml(1000ml need to be customized)
Heating power700 W, 1000 W
Temperature controllerTemperature controlling range: 0 °C~100 °C

Temperature controlling accuracy: ±0.1 °C

Temperature sensor: Industrial platinum resistance;scale number: Pt100
ThermometerIt is a total immersed mercury thermometer having scale division of 0.2 °C
Ambient temperature-10 °C~+40 °C, Temperature fluctuation ≤ 2 °C
Relative humidity≤85%
Dimension77*55*95cm
Weight32kg
