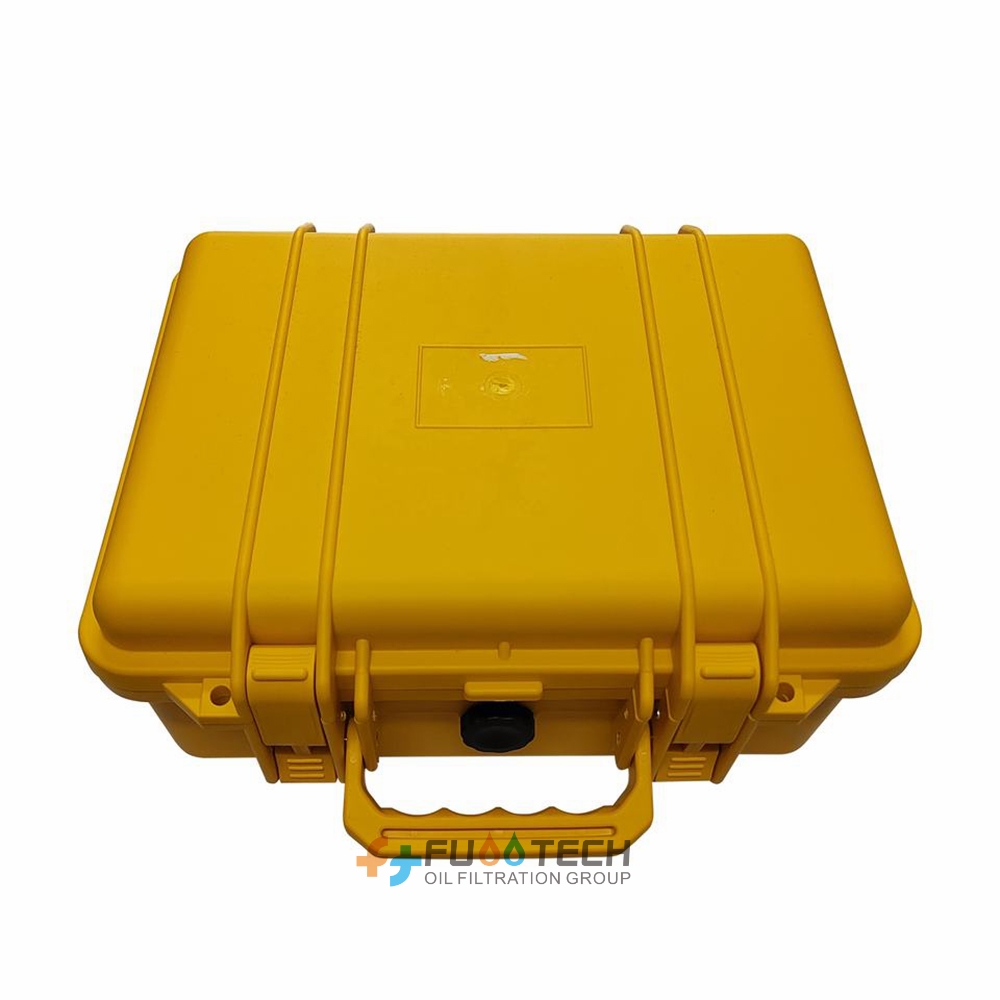

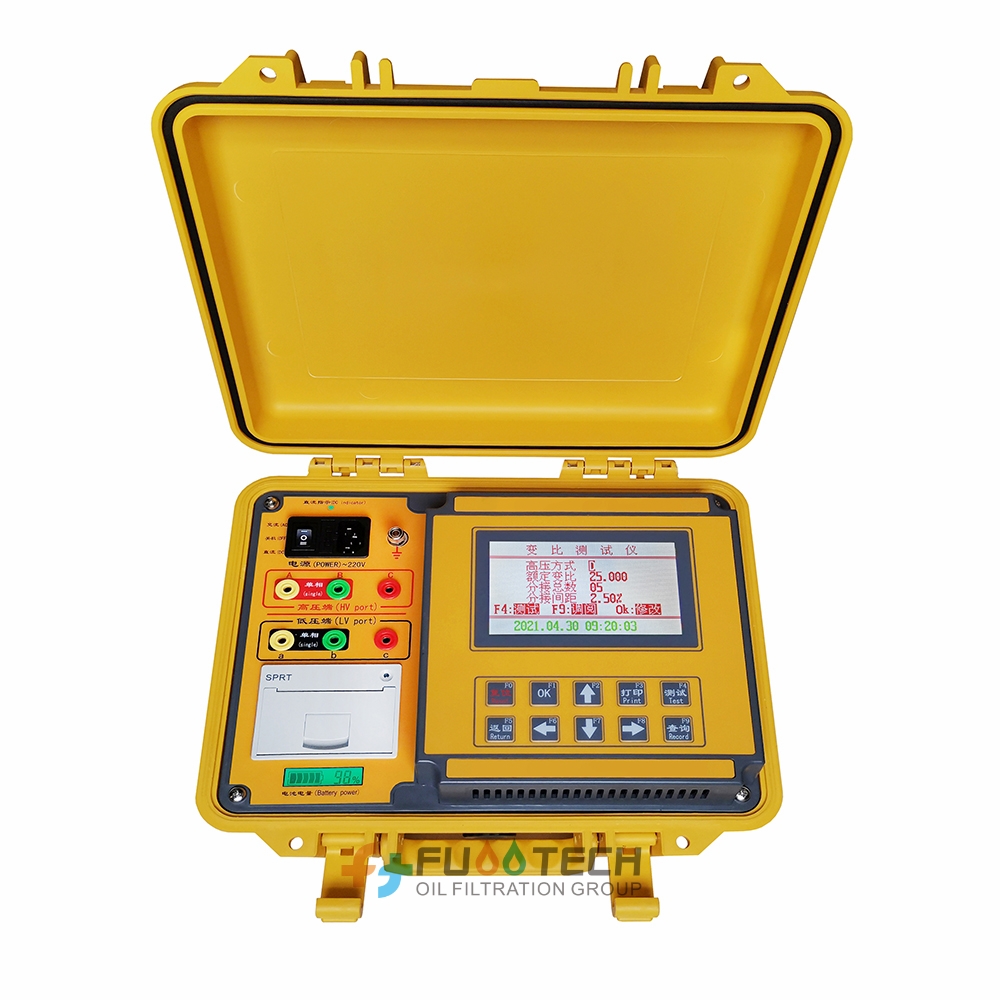

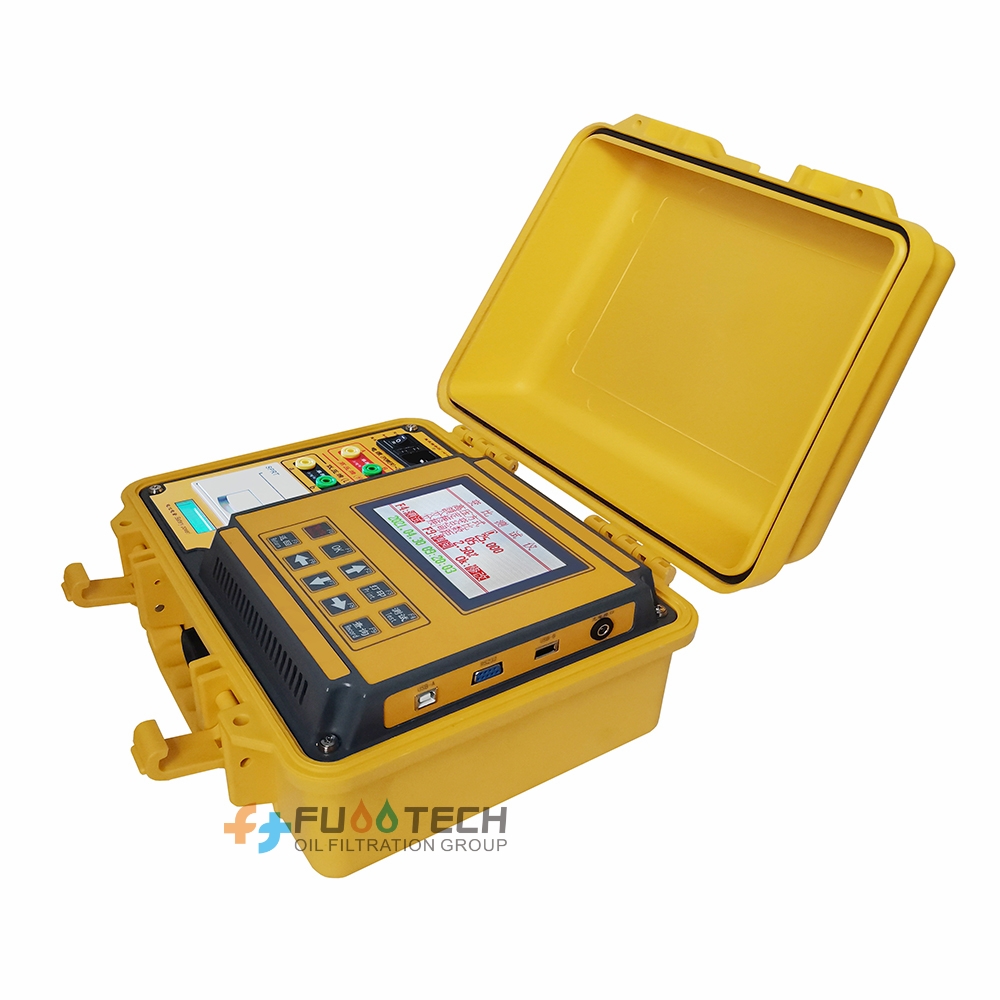

FUOOTECH FTBB-10A
Intelligent Automatic Transformer Turns Ratio TesterFUOOTECH's FTBB-10A Intelligent Automatic Transformer Turns Ratio Tester overcomes the shortcomings of the traditional transformation ratio bridge test, completes the three-phase transformation ratio test at one time, has fast test speed and high accuracy, and greatly improves the test efficiency.
Features
The test range is wide, up to 10000.
The test speed is fast, and the single-phase test is completed within 5 seconds.
240 * 128 color LCD screen, the interactive interface is more intuitive.
Able to test Z-connection transformer and 3-phases transformers.
It has the functions of blind measurement of transformation ratio, group test, tap position test, etc.
No power down clock and date display, data storage function (850 groups of data can be stored).
USB or RS232 interface is included (optional)
High and low voltage reverse connection protection function.
Transformer short circuit and inter turn short circuit protection function.
Thermal printer output function, fast and silent.
AC / DC power supply mode is adopted, and it can be used with or without mains power on site.
Small size, light weight and easy to carry.
Product Parameters
| Ratio measurement range | 0.9 ~ 10000 |
| Ratio measurement accuracy | 0.1%±2 digital (0.9 ~ 500); 0.2%±2 digital (500 ~ 2000); 0.3%±2 digital (2000 ~ 4000); 0.5%±2 digital (4000, above). |
| Resolution | minimum 0.0001 |
| Output voltage | 160V/10V (Autoshift) |
| Interface | USB or RS232 |
| Working power supply | 1). AC mode: AC220V ± 10%, 50Hz. (Do not use generator) 2). DC mode: Lithium battery included. |
| Operating temperature | -10 °C ~ 40 °C |
| Related humidity | ≤80%, no condensation |
| Dimension | Host: 360×290×170 (mm) Cable box: 360×290×170(mm) |
| Weight | Host: 5.5 KGS Accessories: 2.5 KGS |
