Transformer Oil Purifier

Fuootech ZYD-I Series Double-stage High Vacuum Transformer Oil Purification & Regeneration Machine

Product ID：{dede:field name='typename'/}
QQ：1227182945
Phone: WA +86 18984259103
Tel: WA +86 18984259103
Email: sales05@fuootech.com
Time: 2025-08-28 11:36:35

Product Description

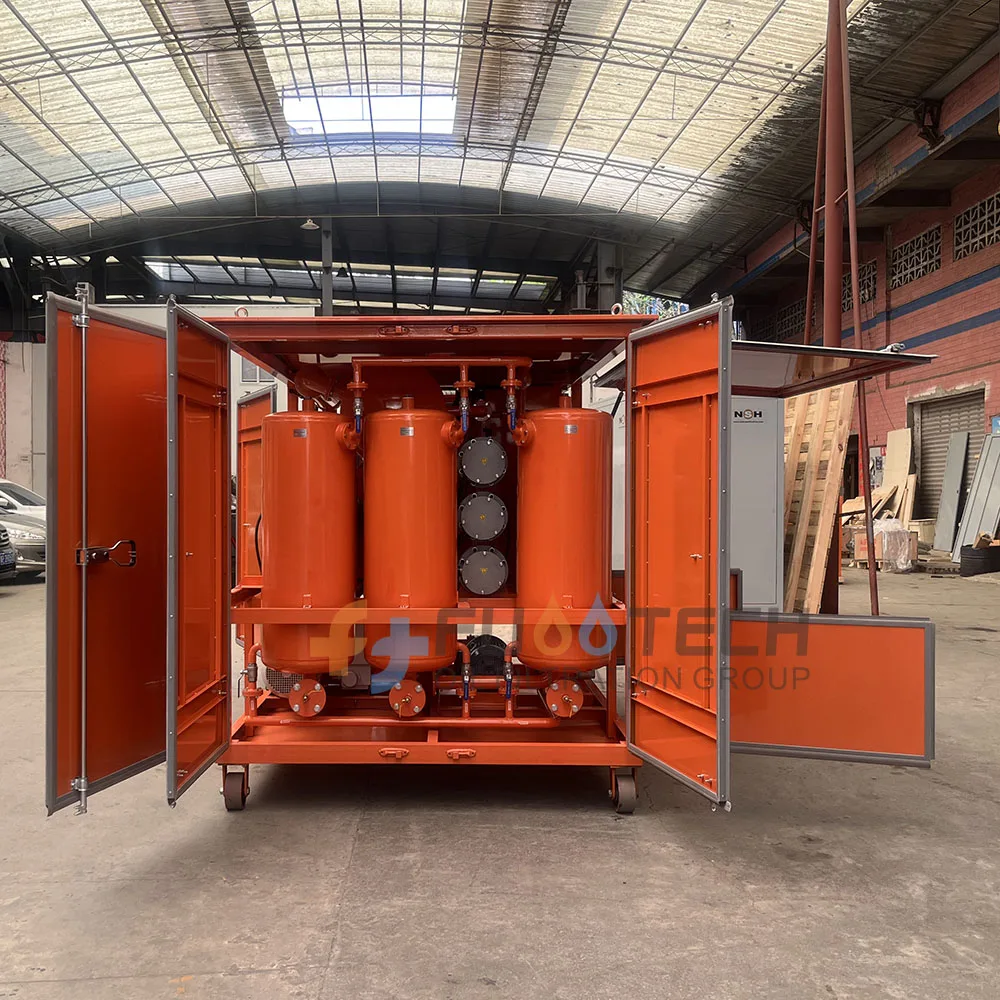

Fuootech ZYD-I Series Double-stage High Vacuum Transformer Oil Purification & Regeneration Machine

Fuootech ZYD-I Series Double-stage High Vacuum Transformer Oil Purification & Regeneration Machine ZYD-I machine is mainly used for maintenance of power transformer by purifying the oil used in transformer, circuit breakers, mutual inductors, cable and capacitors. It can effectively improve the properties of transformer oil from 11KV to 800KV.

Fuootech ZYD-I Series Double-stage High Vacuum Transformer Oil Purification & Regeneration Machine has excellent performance in design, production and cost. The oil purification process and overall performance are winning more and more orders from the world with its advantages of high working vacuum, fast oil filtration speed, oil quality protection and low maintenance. ZYD-I Transformer Oil Filtration Machine provides an extremely cost-effective and environmentally acceptable method of extending transformer oil lifetime to over 20 years!


Features

1. Double-stage high vacuumpumping system, strong power of vacuum evacuating, ultimate vacuum value≤ 5Pa.

2. Big capacity of moisture ands gas separating chamber, efficient oil film evaporation, increasing separating size and separating time to ensure the dry-level and dielectric strength of oil improving greatly.

3. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, rapidly and effectively separate water, gas from oil.

4.Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies, maximum remove the particles and impurities.

5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.

6. Double-safety liquid level controller, pressure protective system and foaming elimination system to ensure machine operating easily and safely.

Technical Parameters

Parameters		Model Unit	ZYD-I-30	ZYD-I--50	ZYD-I--100	ZYD-I--150	ZYD-I--200	ZYD-I--250	ZYD-I--300
Flow Rate		L/H	1800	3000	6000	9000	12000	15000	18000
Recommended Max Oil Volume in One Storage Tank		Tons	6	12	24	40	60	90	110
Working Vacuum Degree		MPa	-0.08 ～ -0.099
Absolute Operating Vacuum Level		Pa	≤ 8 Pa
Working Discharge Pressure		MPa	≤ 0.5
Temperature Control Range		℃	0 ～ 100
Operation Temperature		℃	30 ~ 80 (60 ~ 65℃ is best)
Power Supply			380V AC, 50Hz, 3 phases, 4 wires (or as per your requirements)
Working hours without Trouble		Hour	4000
Continuous Working Hours		Hour	150
Ambient Temperature		℃	-25 ～ 55
Working Noise		dB(A)	65 ~ 85
Heating Power (adjusted available)		KW	30	72	90	120	135	150	180
Total Power		KW	36	78	105	136	150	170	206
Inlet/Outlet		mm	φ25	φ32	φ50	φ50	φ50	φ60	φ60
Weight		Kg	500	900	1200	1400	1650	1800	1950
	Length	mm	1380	1710	1800	2010	2060	2100	2200
Dimension	Width	1mm	1020	1510	1560	2030	2100	2150	2250
	Height	mm	1760	1860	2080	2080	2200	2450	2550
