Product Overview

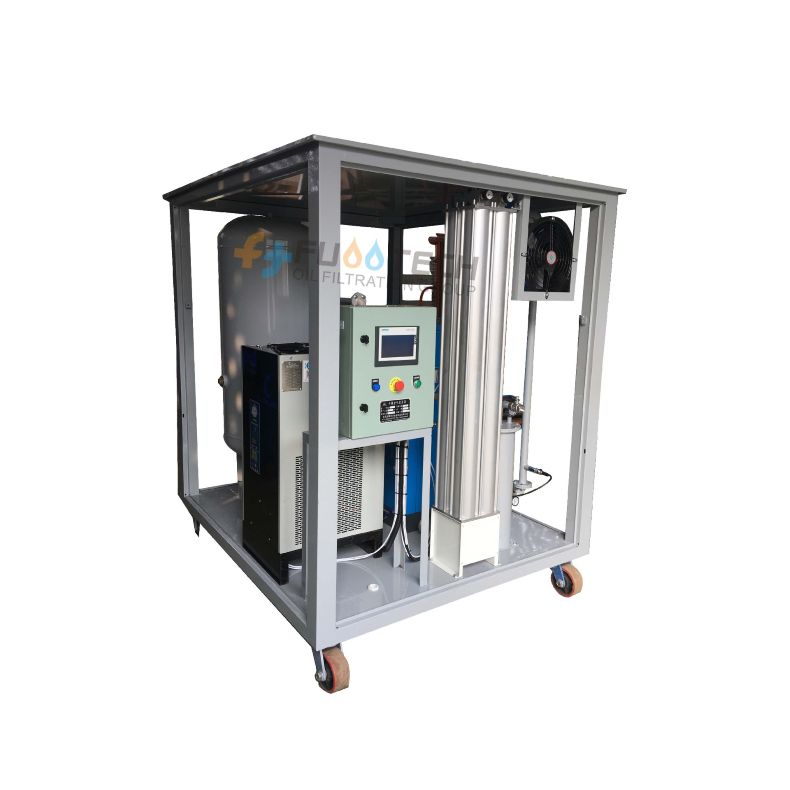

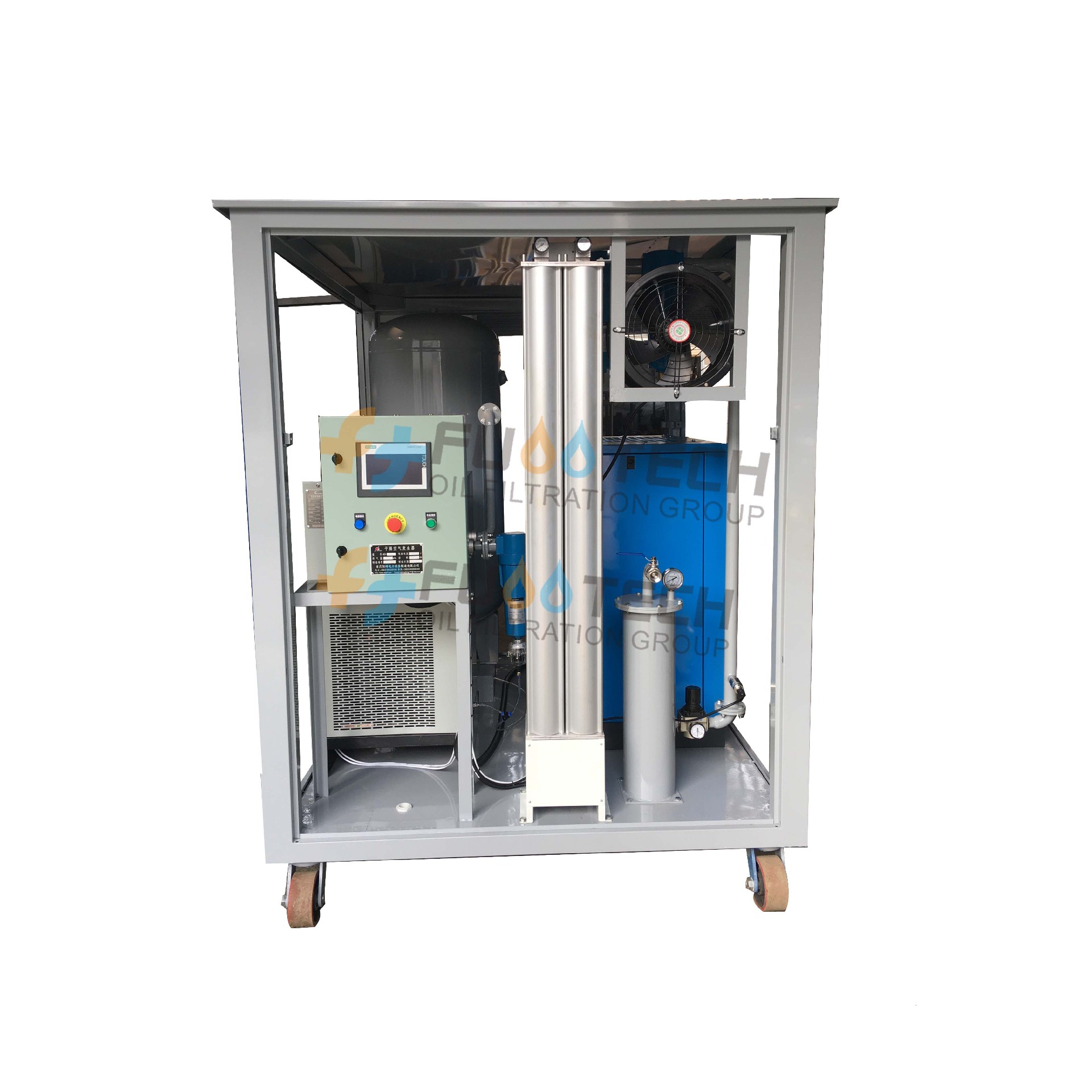

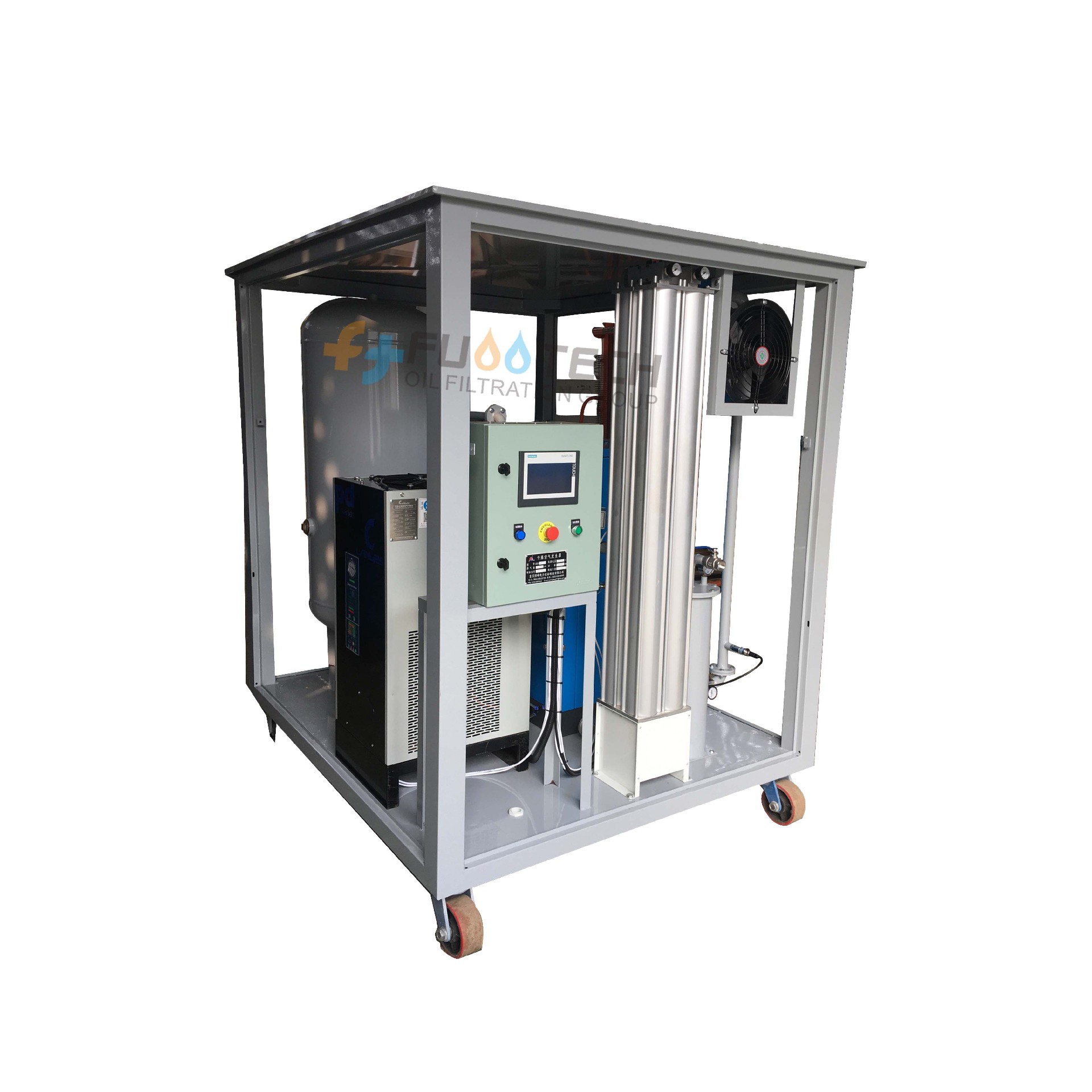

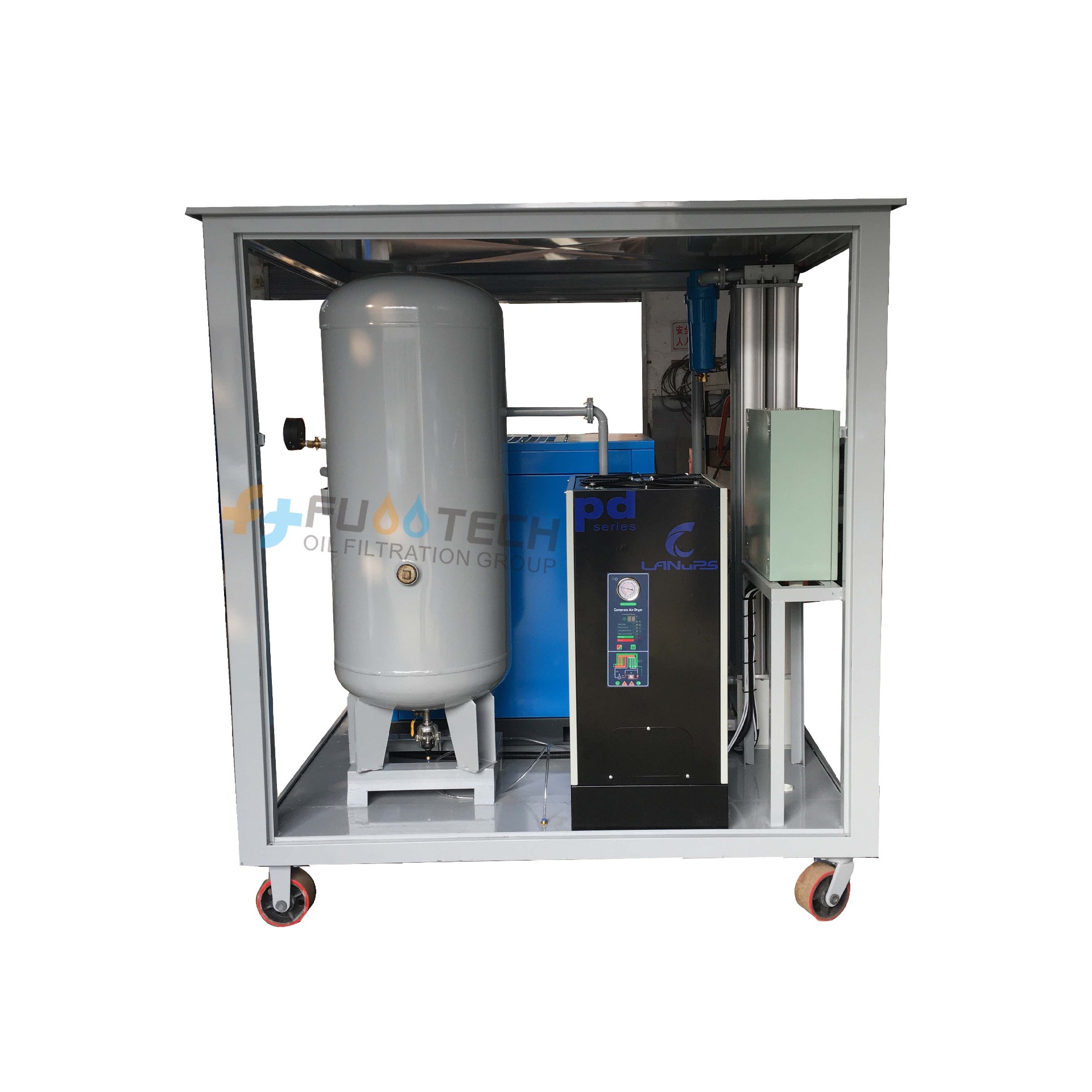

DAG Series Dry Air Generator

Series DAG Dry Air Generator, Dry Air Compressor for Transformer is widely used for various electrical equipment such as transformers and reactor to supply high purity dry air during installation and maintenance. The dry air it provided can keep good insulation of the electrical equipment against wet and protect the maintainer working inside the equipment against oxygen-lack.

Series DAG Transformer Dry Air Generator Machine Supply Dry Air For Transformer Maintenance is much safer, more reliable, more economic and more convenient than using Nitrogen. Its working condition is not affected by climate. And it is very good especially for overnight works, just seal all flanges and fill dry air upto 0.02 ~ 0.03 Mpa. By this way, no need spend more time on oil filling and oil drainage, maintenance period is shortened and efficiency is improved. The lower the dew point in air is, the less the moisture content in the air is, and the much drier the dry air generator works.

During filtering oil, people can also supply dry air to dry the oil tanks and oil, especially this operation can ensure oil’s insulation quality and reduce water content during filtering oil in rainy days and humid area.

When Hot Dry Air Supply System is connected to oil depot (or big oil tank), it can keep the stored oil in qualified condition for long time so that can be suitable for using these oils urgently at any time. This machine can also be used for other storeroom such as library reference room and production area which need to be dried.

Functions

Reduce and remove the moisture content in the air, the dew point can be decreased down to -75℃ after treatment.

Reduce and remove the particles in the air

Take the place of drying through Nitrogen and hot oil-circulation while transformers work overnight, more reliable economical convenient and safer than Nitrogen.

Supply dry air to keep transformer dry when it’s in installation or repair

Ensure that the maintenance staff will not be short of oxygen when working inside of the equipment.

Shorten the maintenance period and improve the efficiency of the maintenance quality.

FUOOTECH DAG Transformer Dry Air Generator has excellent performance in design, production and cost. The effective process and overall performance are winning more and more orders from the world with its advantages of high automation, safe operation and low maintenance. DAG Series Transformer Dry Air Generator provides an extremely cost-effective and environmentally acceptable method of extending transformer lifetime to a longer period!

Technical Parameters

Item	Model	DAG-40	DAG-60	DAG-100	DAG-200	DAG-300	DAG-400	DAG-500	DAG-600
Air Supply Capacity	m3/h	40	60	120	200	300	400	500	600
Air supply pressure	MPa	0.05~0.5
Working Pressure	MPa	0.6 ~ 0.8
Inlet Air Temp.	℃	≤ 50
Continuous working time	Hour	≥ 200
Average Working hours without troubles	Hour	≥5000
Dew Point	℃	≤ -60 ~ -70℃
Particles	µm	0.01
Noise	dB (A)	60 ~ 80
Power Supply		380 VAC, 60Hz, 3 Phase (or as per actual need)
Total Power	KW	6	8	16	24	33	47	53	58
Air Pipe Diameter	mm	20	25	32	40	45	50	50	58
Dimension (LWH)	mm	1350* 1200 * 1600	1600* 1420* 1650	1900* 1700* 2150	2250* 1950* 2400	2300* 2000* 2430	2350* 2050* 2450	2950* 2100* 2750	3150* 2200* 2800
Weight	KGS	450	600	1350	1550	2360	2850	3500	3780
Note: The dimension and weight will be changed with changing of technical specs. All the specs can be customized according to client's requirements.
