Product Overview

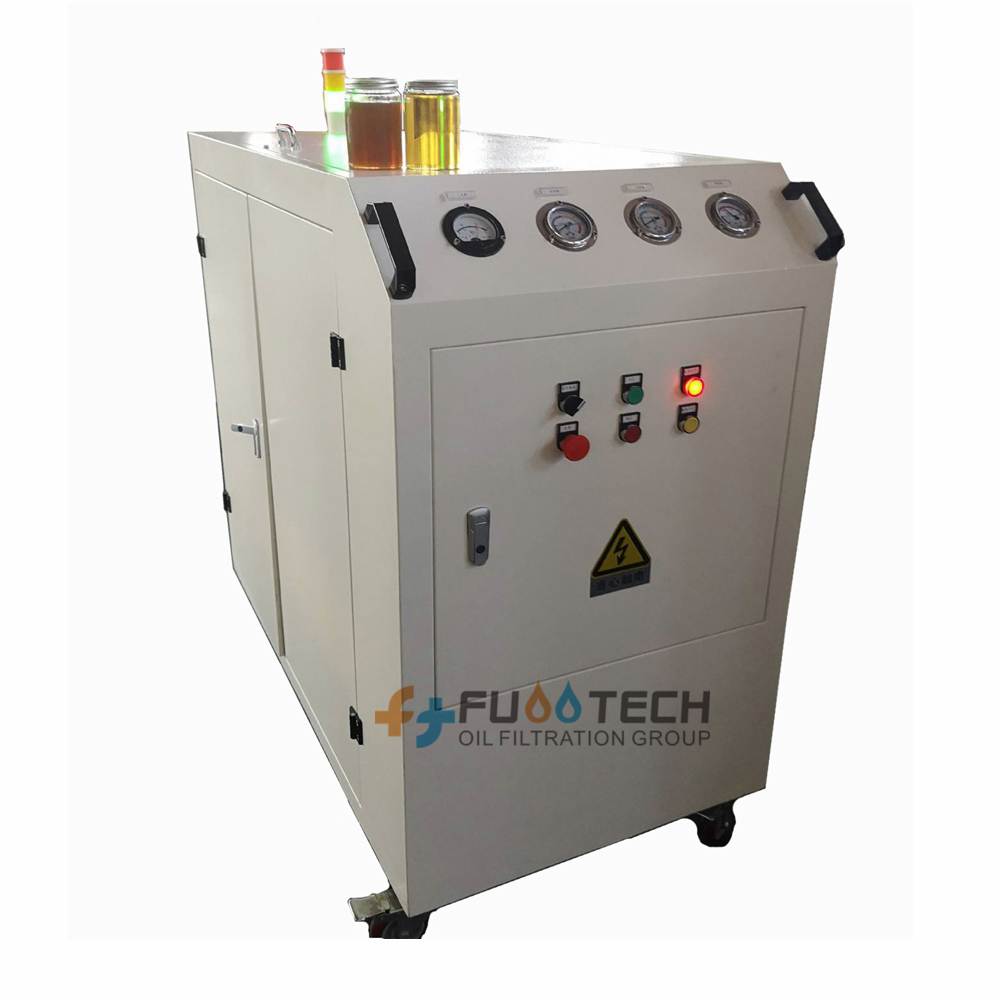

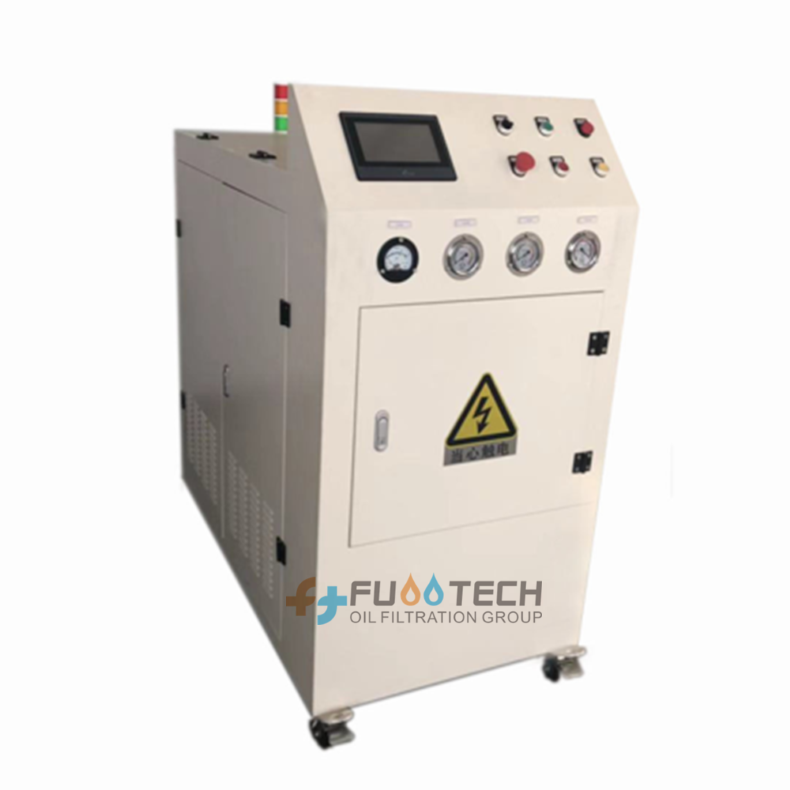

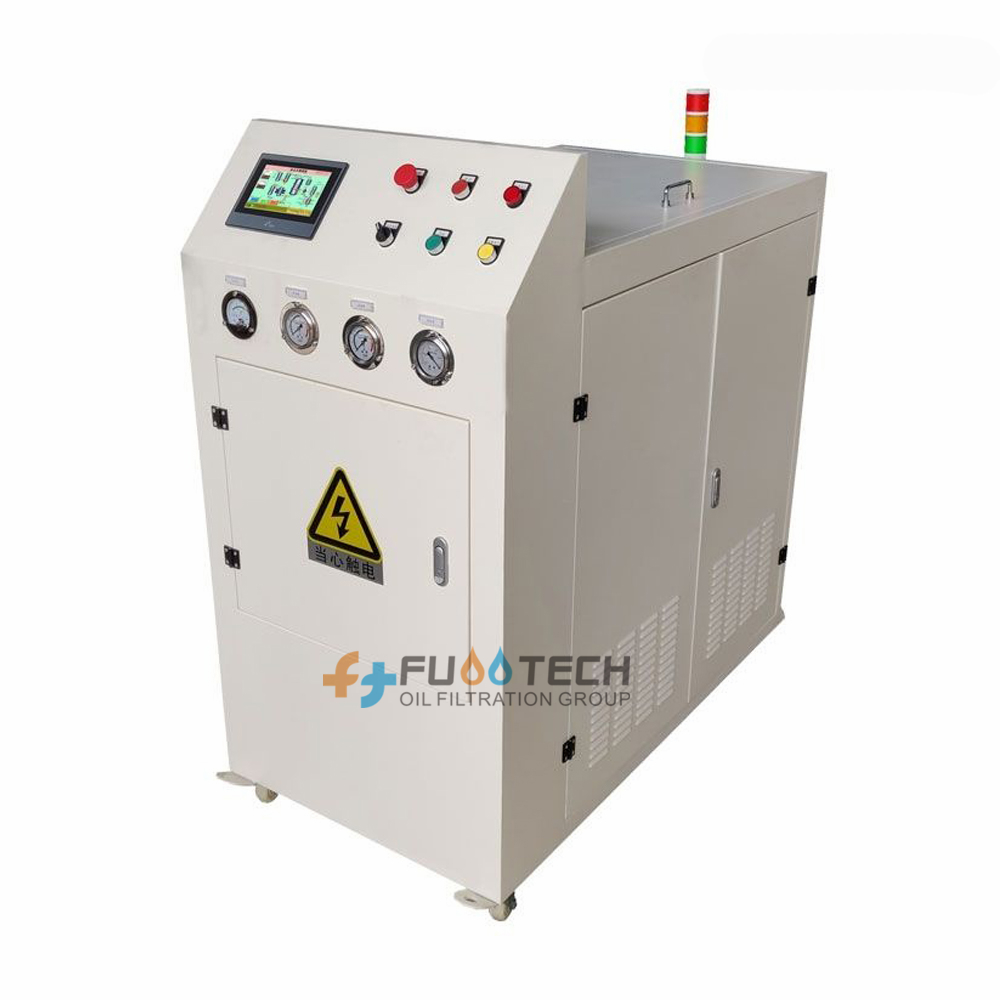

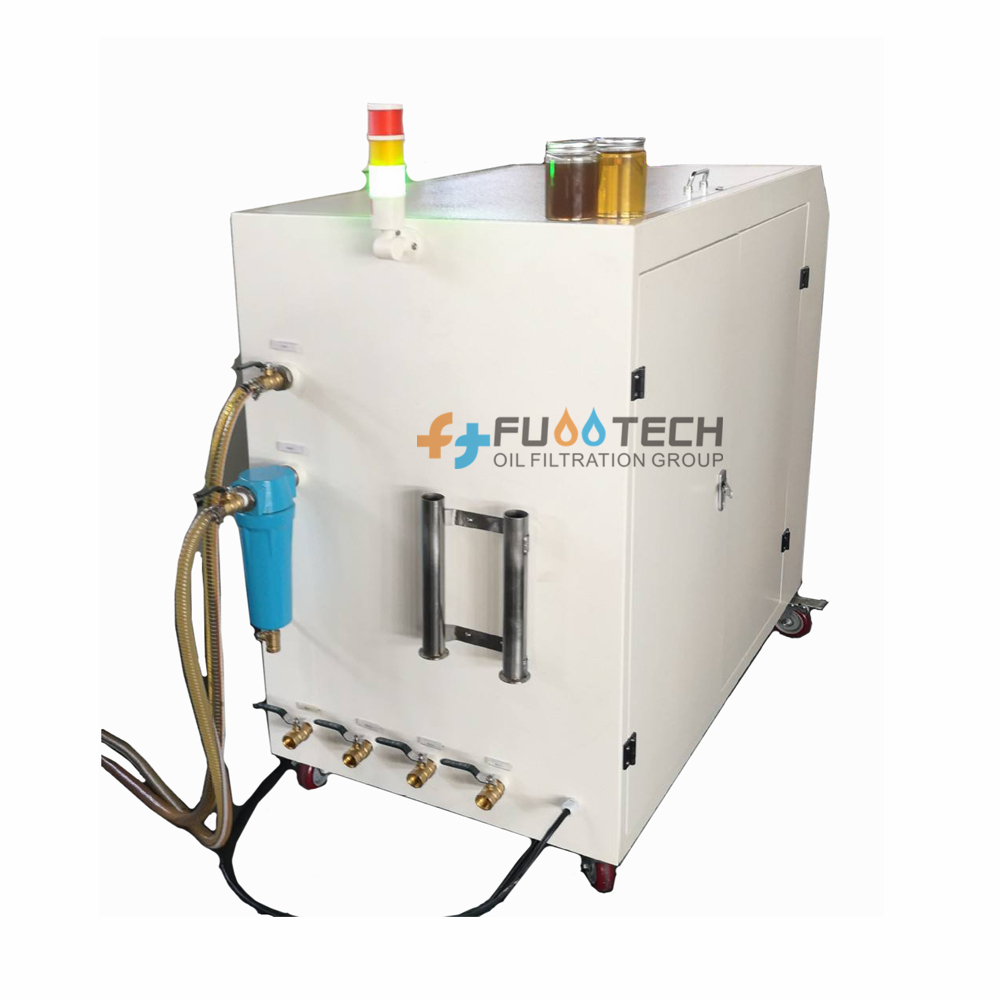

JD-T Series Electrostatic Oil Cleaner

FUOOTECH® designed, developped and produced JD-T Series Electrostatic Oil Cleaner according to the preferences of customers from the world starting 2009. It is applicable to use in all types of mineral oil cleaning such as Hydraulic Oil, Lubrication Oil, Turbine Oil, Transmission Oil, Thermo Oil, Gear Oil etc. in various industries. Unlike the traditional method using filtration, this equipment use electrostatic technology to extract all sizes of insoluble contaminants from the oil. The extraction of particle can be as small as 0.02 microns. This effectively removes fine particle/ soft contaminant/ varnish from oil, which cannot be removed by any fine filter. With this, it able to solve most mechanical problem developed from oil such as control valve jammed, pump high noise, bearing wear etc. This is more than 200 times more efficient than the normal filter. Electrostatic oil cleaning machine is one of the most advance technology to keep your lubrication (mineral oil) clean and long lasting. It also will help your machine free of abrasive materials and enhance the life span of your machine. This machine is widely used in power plant, turbine lubrication system, Hydraulic Press, Aviation, Construction Machinery, injection mould equipment, rubber moulding plants, Aluminium/ Non Ferous Extrusion, Plywood hot press, servo control hydraulic system, leather processing, shoe making, Mining equipment, automobile industries, steel industries, sugar mill, semi conductor industries, paper manufacturing plants and all types of plants which are using mineral oil for their machines. Electrostatic Oil Cleaner has proven to be most effective way in modern oil management. It is international widely use now.

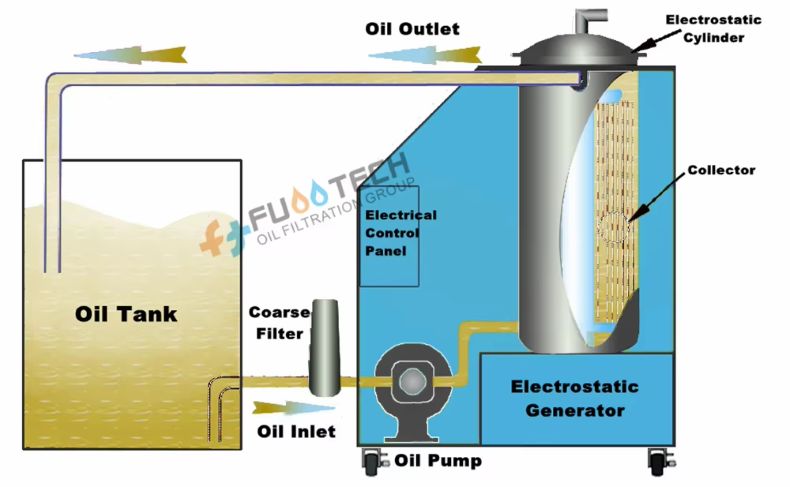

electrostatic oil cleaner.png



Features


Low energy consumption, and the online circulation cleaning can be carried out for a long time, so that the oil in the system is always kept clean, and the cleaning process does not affect the normal operation of the main system. High purification accuracy, can remove particles ranging in size from 0.02µm to 100µm. It can wash out all the sludge and oxides attached to the oil tank, pipe wall and components, truly playing the role of a cleaning system. Use the advanced electrostatic technology to extract all sizes of insoluble contaminants from the oil, will not block and solve the problem of back pressure and power consumption increase. No more oil changes. No attendance required during operation. Improve performance of hydraulic components to meet high speed & precision demand. Eliminates oil disposal & recycling problem. Easy to install. Slowdown of oil ageing process for extension of oil lifespan. Automatic start- and stop-control of the cleaning process by PLC system as option. Low operation cost. Reduce power consumption.

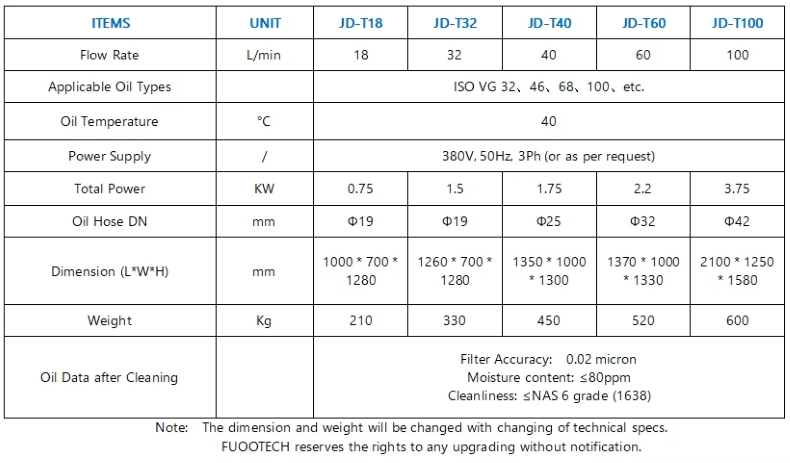

Technical Parameters






Packing and Shipping
