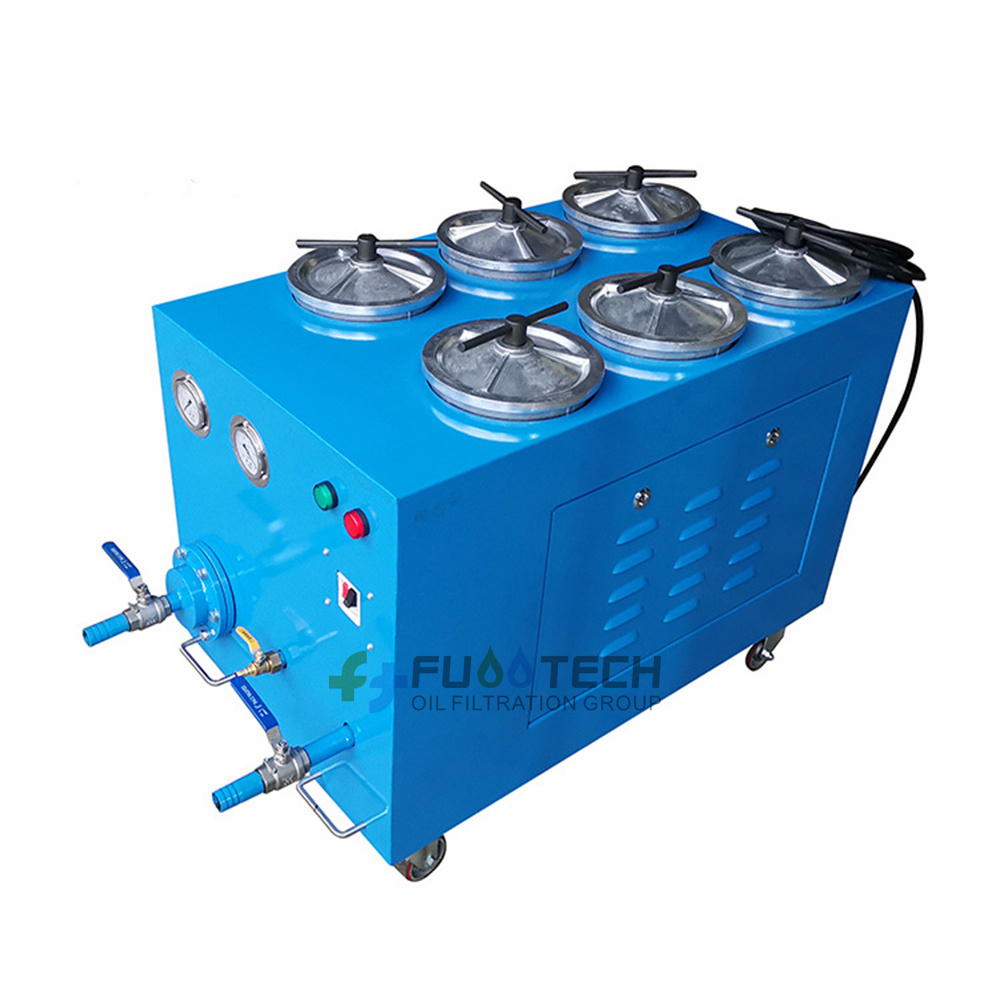

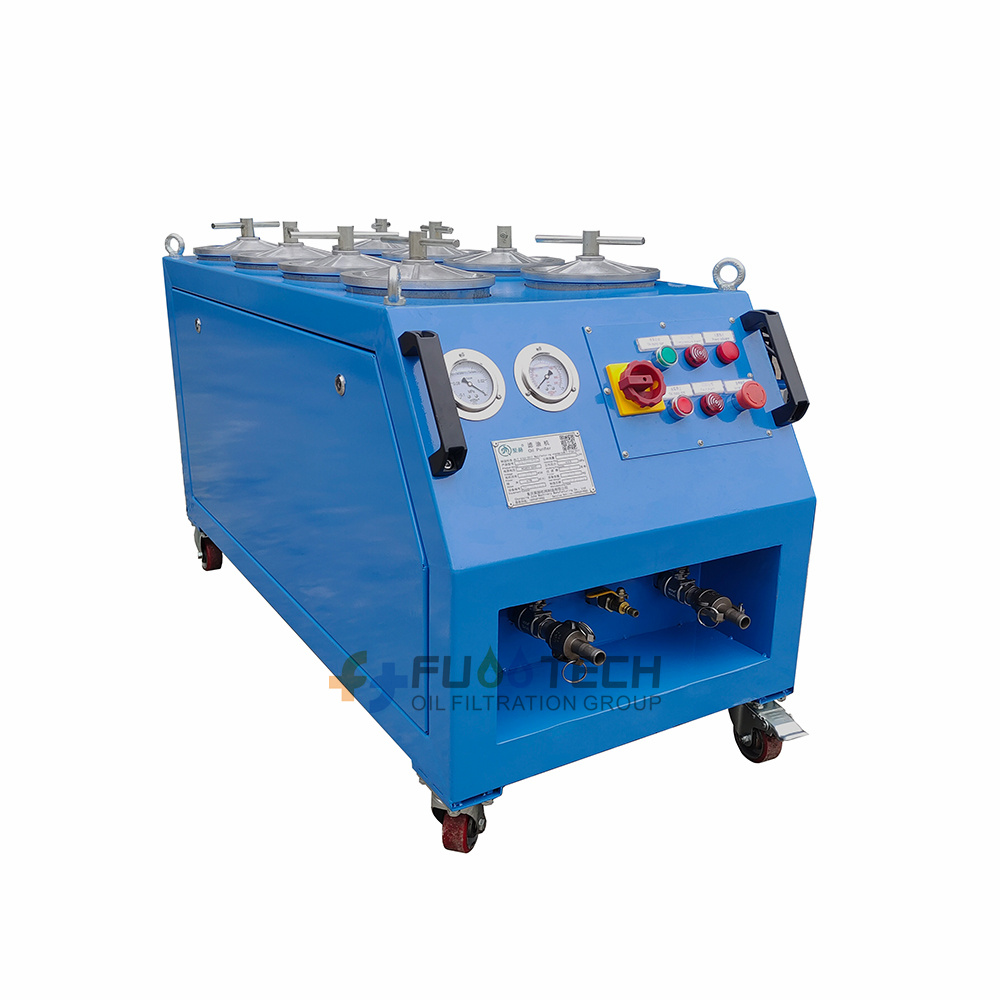

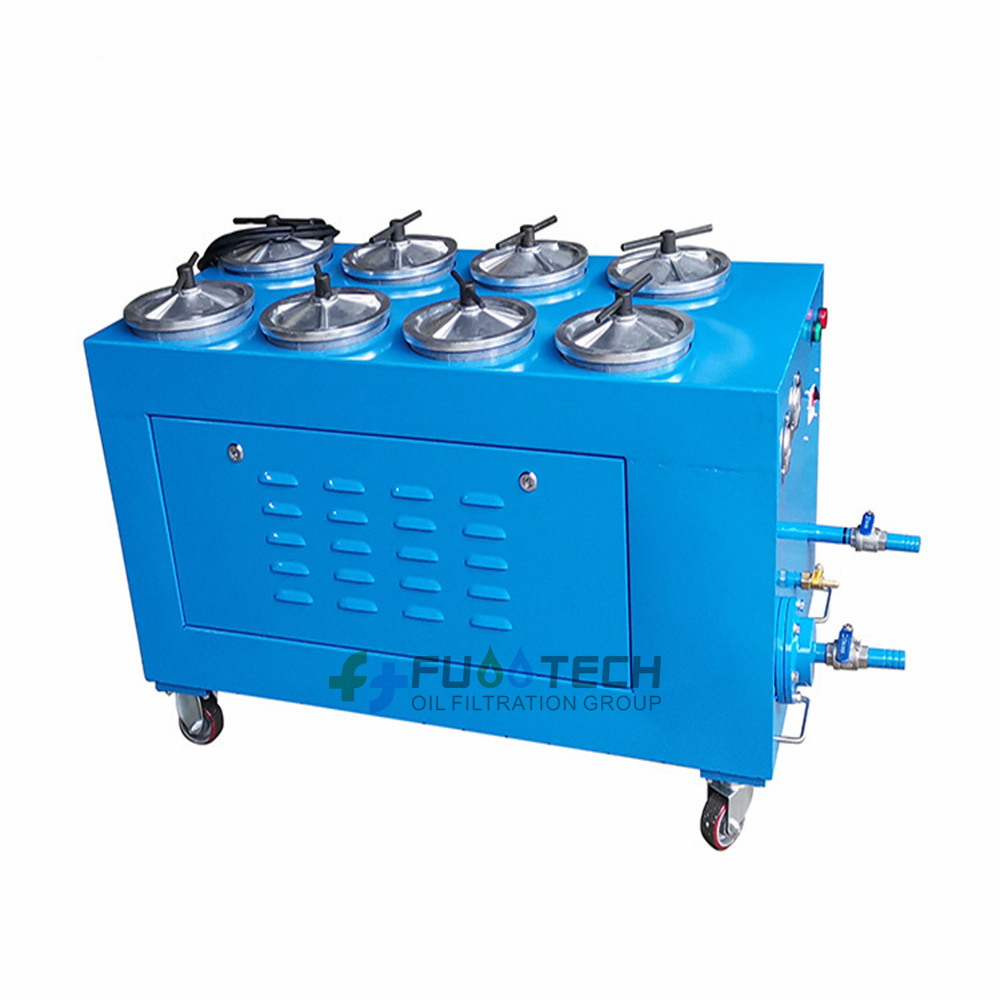

FUOOTECH FTJM-3R Ultra-precision Oil Filtration Machine
FUOOTECH FTJM-3R Ultra-precision Oil Filtration Machine is used for high-precision purification and filtration of unqualified hydraulic oil and mechanical machinery oil, and absorbs particulate impurities, dust, carbon black, sludge and trace moisture in the oil.
This portable oil filter machine is widely used in metallurgy, mining, transportation, machinery manufacturing, wood processing and other industries for deep-level, high-precision adsorption purification regeneration treatment of hydraulic oil.
The non-stop online bypass ultra precision filtration of hydraulic lubricating oil in precision applications comprehensively improves the cleanliness of the oil, restores lubricating oil viscosity, flash point and performance. Ensure the normal operation of the hydraulic system, power system and lubrication system.
Application
Features
1. Special extra-precision filter elements installed to effectively removes all the particles that are usually very difficult to remove with conventional filters and performs a total cleaning of the oil by removing solid particles, absorbing water and eliminating sludge and other oil oxidation residues.
2. Equipped with filter replacement indication, monitoring the filter's working status.
3. Coarse filter installed before oil pump to remove the big size particles, so as to protect the oil pump.
4. Oil pan designed at the bottom of base to prevent the oil from spilling on the ground and polluting the environment.
5. Box-type container structure, with casters at the bottom for easy movement, beautiful appearance and easy to use.
6. High overall efficiency, low working noise, and long service life.
7. Complete and advanced protection system provides the reliable and safe operation.
8. Compact design, lightweight, easy to move.
9. Simple operation steps, and low maintenance time & cost.
Product Parameters
| Name | Unit | FTJM-3R-1 | FTJM-3R-2 | FTJM-3R-3 | FTJM-3R-4 | FTJM-3R-6 | FTJM-3R-8 |
| Flow Rate | L/min | 2.5 | 5 | 7.5 | 10 | 15 | 20 |
| Number of Filter | Pcs | 1 | 2 | 3 | 4 | 6 | 8 |
| Power Supply | AC 380V, 50Hz, 3Phase or AC 220V, 50HZ, 3Phase, or as per request | ||||||
| Working Pressure | MPa | ≤0.4 | |||||
| Oil Temperature | ºC | 5~80 | |||||
| Filter Accuracy | µm | ≤1 | |||||
| Motor Power | KW | 0.25 | 0.37 | 0.55 | 0.75 | 1.1 | |
| Inlet & Outlet Diameter | mm | Φ8 | Φ15 | Φ15 | Φ20 | Φ25 | Φ25 |
| Oil Tank Capacity | L | 500 | 1000 | 1500 | 2000 | 3000 | 5000 |
| Working Noise | dB(A) | ≤70 | |||||
| Ambient Temperature | ºC | -15~45 | |||||
| Size | mm | 450×230× 550 | 650×510× 650 | 750×510× 650 | 750×510× 650 | 940×510× 650 | 1220×650× 650 |
| Weight | kg | 40 | 65 | 80 | 100 | 120 | 150 |
