Transformer Oil Purifier

FUOOTECH ZYD-U Series Ultra High Voltage Double-stage Vacuum Transformer Oil Purifier

Product ID：{dede:field name='typename'/}
QQ：1227182945
Phone: WA +86 18984259103
Tel: WA +86 18984259103
Email: sales05@fuootech.com
Time: 2025-08-28 14:07:56

Product Description

FUOOTECH ZYD-U Series Double-stage Vacuum Transformer Oil Purifier

FUOOTECH Series ZYD-U Ultra High Voltage Vacuum Transformer Oil Purifier developed by FUOOTECH Group in 2006 is specially designed for the filtration, dehydration and degasification of the insulating oils including transformer oils, polybutene and silicone fluids in the ultra high voltage electrical equipment.

Ultra High Voltage (UHV) Grid is named as “Electrical High Way” which features big capacity, long distance and low loss. There are 500KV AC, 750KV AC, 1000KV AC, ±660KV DC, ±880KV DC, etc… Considering ensuring its ultra high safety, it has extremely requirements on insulating oils using in the transformer, mutual inductor, and reactor.

Series ZYD-U extra high voltage (EHV) transformer oil purification machine is very powerful in abilities of vacuum degassing, dehydration and filtration for insulating oil or transformer oil. It applies to on-site transformer maintenance and deep purification of new transformer oil, imported transformer oil oil, mutual inductor oil and ultra high voltage transformer oil. It can also be used for transformer oil vacuum filling and vacuum drying operation.

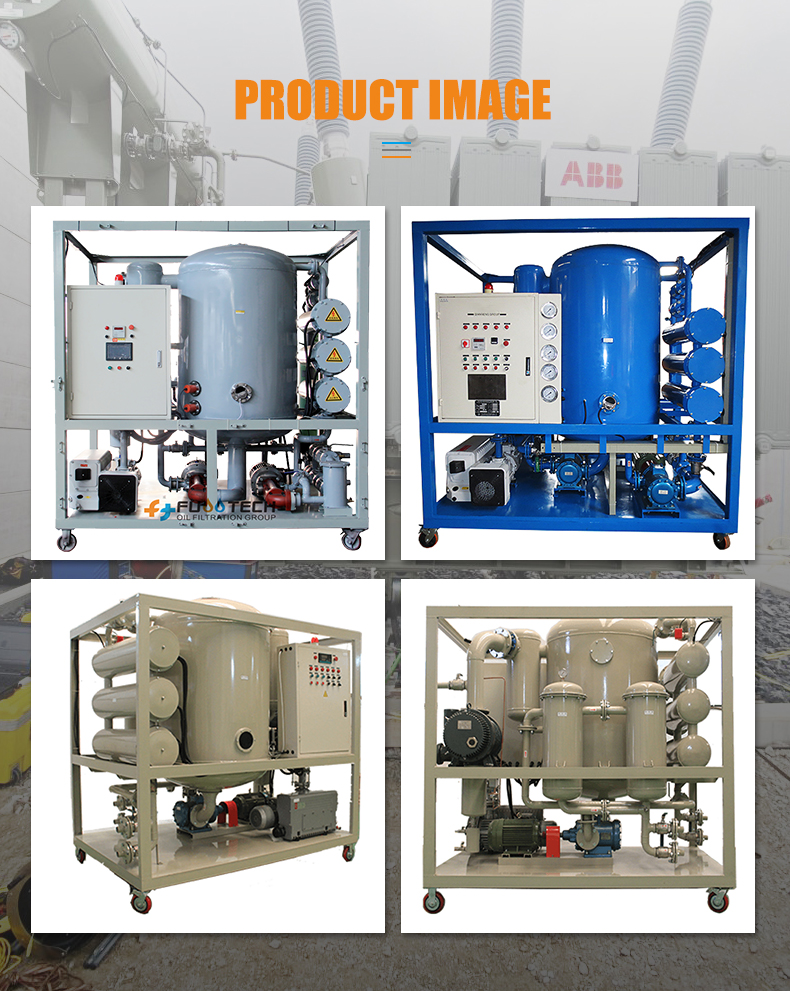

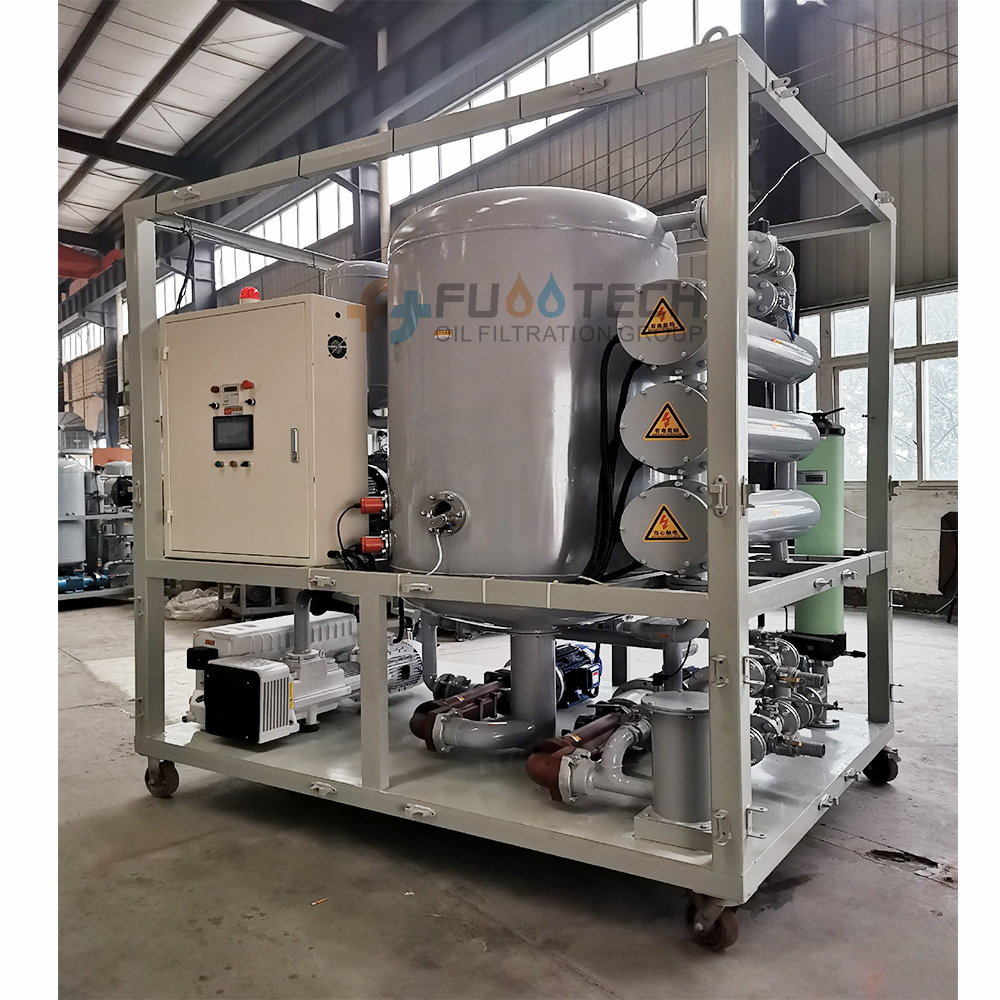

ZYD-U (1).jpg

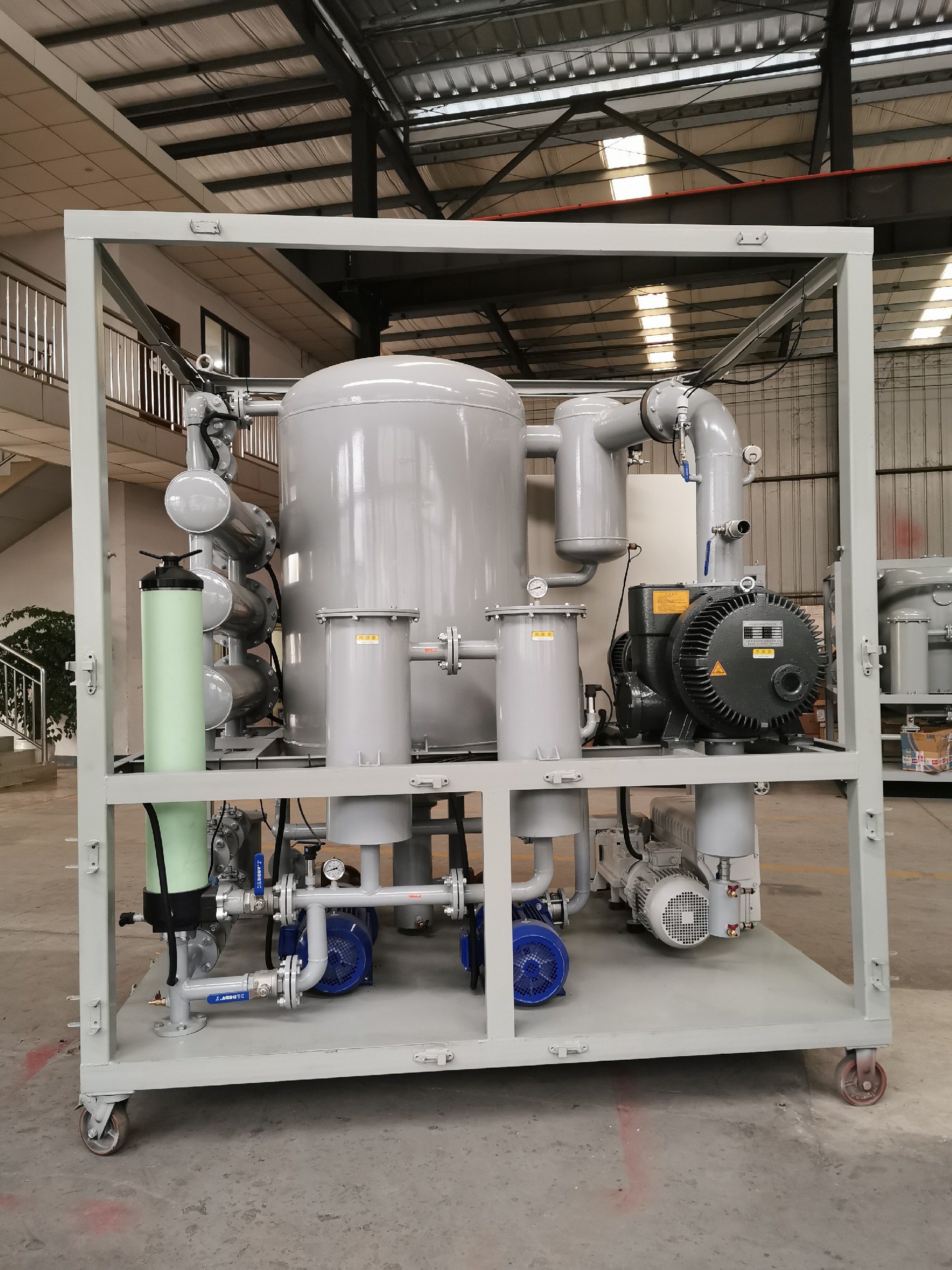

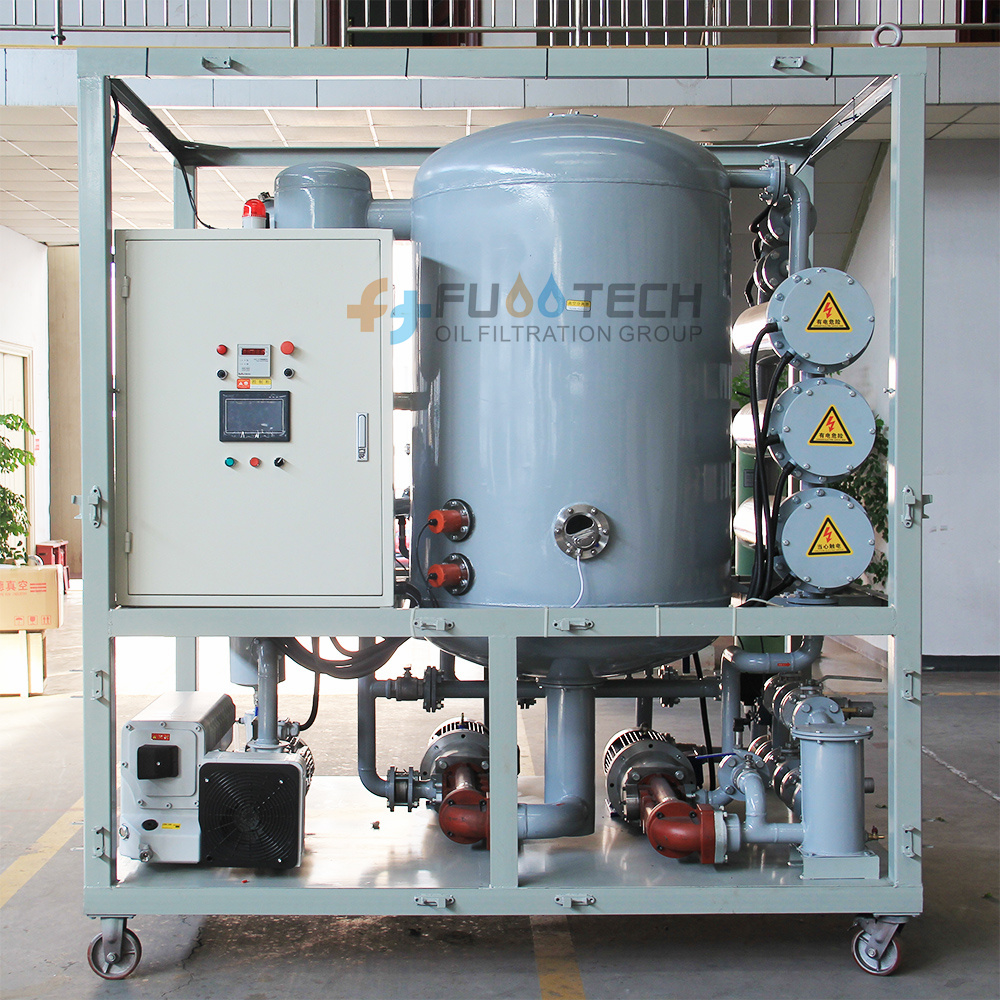

ZYD-U (2).jpg

Features

1). Available in different capacities: 6,000 - 30,000 LPH.

2). Specially designed for ultra-high transformer oil treatment, and is suitable for the purification of insulating oil in the production, installation and maintenance of ultra-high voltage transformers above 500KV.

3). With strong double-stage high-speed vacuum system, and advanced dehydration and degassing system, adopts large-area three-dimensional flash technology, which can efficiently and quickly remove moisture, gas, polar substances and other degraded substances in the oil, so as to improve the flash point and dielectric strength of transformer oil.

4). Adopts multi-stage, high-β value and high-pollution-holding composite gradual-density filtration system, with a composite microporous structure filter material, corrosion-resistant and high-temperature resistant, good mechanical strength, long service life, and can deeply filter out fine particles in oil. Multi-stage filtration, fine filter rated up to 1 microns prevents any tiny particles from entering back into the transformer. 5). The unique auto-defoam device is used to effectively prevent the vacuum pump from leaking oil and greatly improve the degassing efficiency.

6). The equipment has an advanced heating system, which has the characteristics of excellent corrosion resistance, stability, anti-adhesion, insulation, fast heating and uniform heating. Equipped with safety oil temperature protection and temperature automatic control system. 7). Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.

8). The equipment has automatic pressure alarm shutdown system, automatic overload protection system, automatic constant temperature system, automatic defoaming system, automatic anti-spray protection system and excellent and high-quality configuration, which guarantees the fully automatic and safe operation of the equipment.

9). Humanized design, low noise, easy operation, long maintenance intervals, low energy consumption and low operating costs.

Technical Parameters

Parameters	Model Unit	ZYD-U-100	ZYD-U-150	ZYD-U-200	ZYD-U-250	ZYD-U-300
Flow Rate	L/H	6000	9000	12000	15000	18000
Ultimate Vacuum Degree	Pa	≤ 5
Working Vacuum Degree	Pa	≤ 50
Working Discharge Pressure	MPa	≤ 0.4
Temperature Control Range	℃	20 ～ 100
Operation Temperature	℃	40 ~ 65
Power Supply		380V, 50Hz, 3 phases (or as per your requirements)
Trouble-free working time	Hour	≥4000
Continuous working time	Hour	≥150
Ambient Temperature		-25 ～ 55℃
Working Noise	dB(A)	65 ~ 90
Heating Power (adjusted available)	KW	72	90	135	150	180
Total Power	KW	80	105	150	170	210
Inlet/Outlet	mm	Φ32	Φ40	φ50	Φ60	φ65
Weight	Kg	1300	1750	2200	2600	3000
Dimension	mm	2200×1700 ×2250	2400×1850 ×2300	2550×2050 ×2400	2650×2100 ×2500	2800×2300 ×2660
Oil Result after Filtration		Moisture (Water Content) ≤ 3 PPM
		Gas Content ≤0.01% (Vol)
		Impurities Degree (Filtration precision) ≤ 0.5 micron (no free carbon)
		Breakdown Voltage (Dielectric Strength) ≥75 KV
		Flash Point ≥145℃
		Granularity 5 ~ 50μm (in 100ml oil sample) ≤ 500 Nos.
		Cleanliness ≤NAS 1638 Grade 6
Note: 1. The dimension and weight will be changed with changing of technical specs. 2. All the specs can be customized according to client's requirements.
