Transformer Oil Purifier

FUOOTECH ZYD-T-O Series Double-stage Vacuum Transformer Oil Purifier

Product ID：{dede:field name='typename'/}
QQ：1227182945
Phone: WA +86 18984259103
Tel: WA +86 18984259103
Email: sales05@fuootech.com
Time: 2025-08-28 13:51:19

Product Description

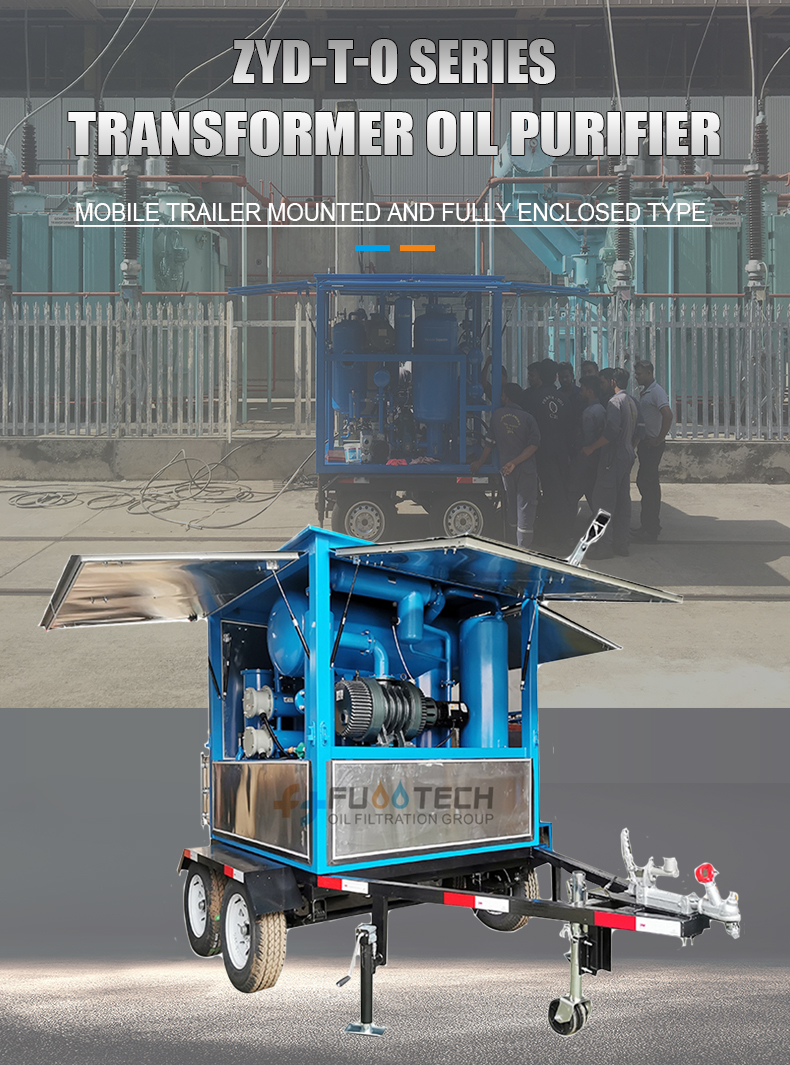

FUOOTECH ZYD-T-O Series Double-stage Vacuum Transformer Oil Purifier

FUOOTECH® designed, developed and produced ZYD-T-O Series Double-stage Vacuum Oil Transformer Oil Purifier according to the preferences of customers from South American such as Mexico, Brazil, Ecuador, El Salvador, Chile, Argentina, etc. and Middle East Countries such as Kuwait, Bangladesh, Pakistan, UAE, Saudi Arabia, etc. starting 2009.

This oil filtration plant is specially designed for the completely filtration, dehydration, degassing, and particles removal of insulating oils in transformers. It provides high efficiency oil purification works including degassing, drying and particulate removal so as to increase the oil’s dielectric strength value (BDV value) and improve the physical & chemical properties comparable to new transformer oil.

FUOOTECH ZYD-T-O Series Double-stage Vacuum Oil Transformer Oil Purifier is also suitable for the treatment of new oil and reconditioning of used transformer oil in EHV class transformers, shunt reactor and other oil filled equipment in power plant, power station, electric power company, power transmission equipment, transformers, industrial and mining enterprises, especially suitable for on-site installation, maintenance and purifying high level new oil, or running oil from big power transmission and distribution equipment and transformers on national main power transformation grid, which is above 110-750KV. It can shorten the oil treatment period for transformer installation and maintenance, and achieve properties of treated oil within specified limits at the rated capacity.

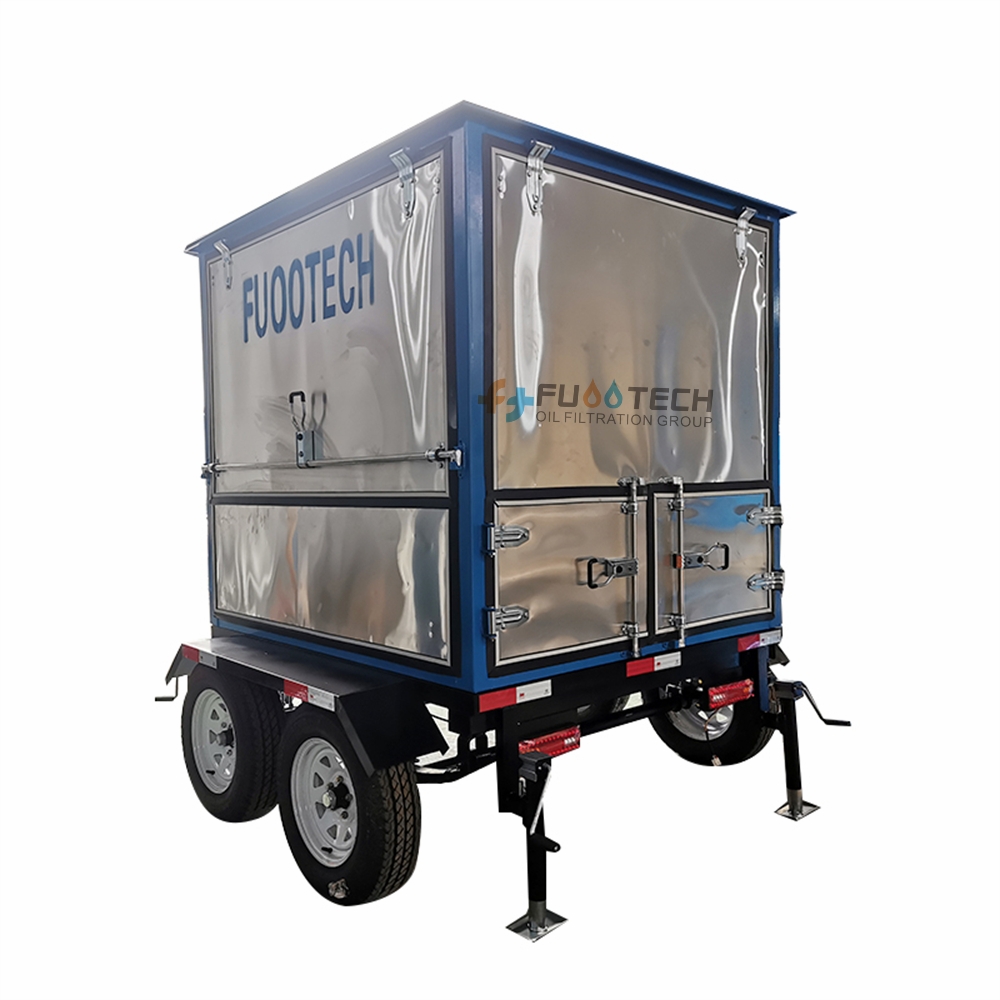

ZYD-T-O (1).jpg

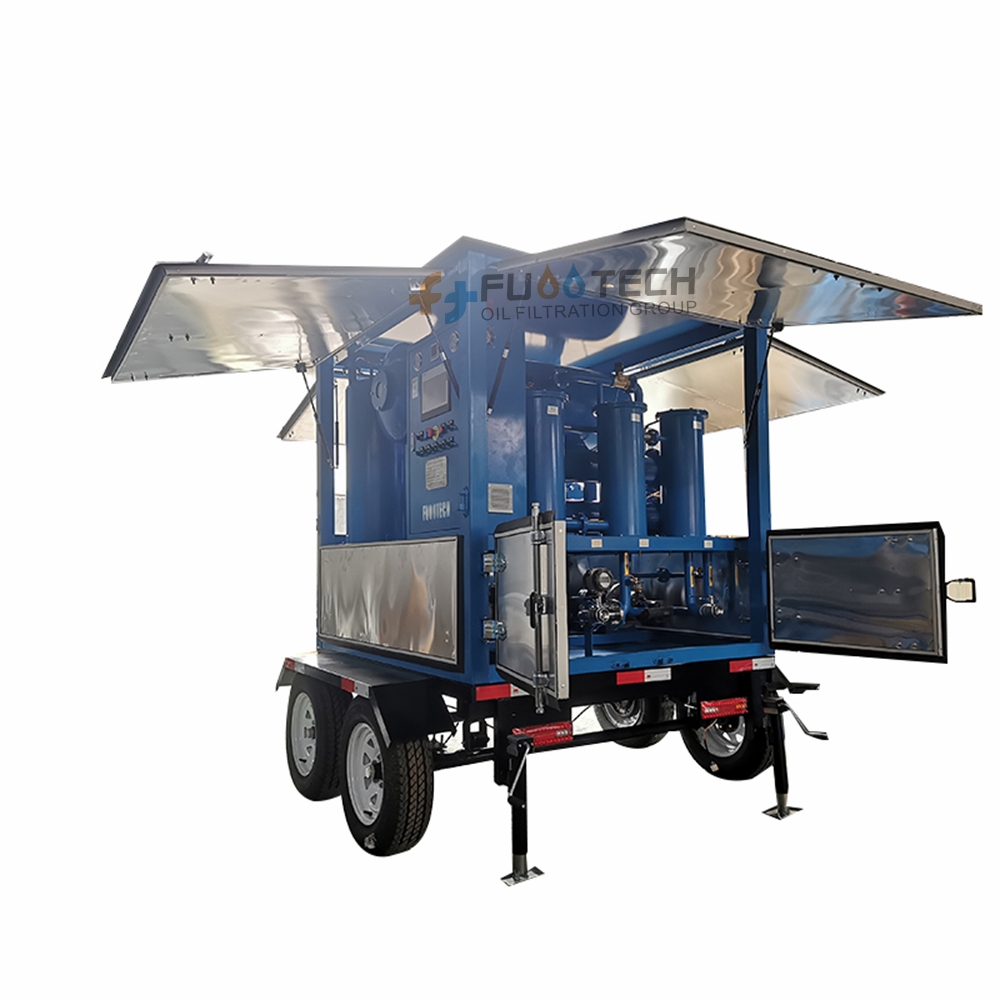

ZYD-T-O (4).jpg

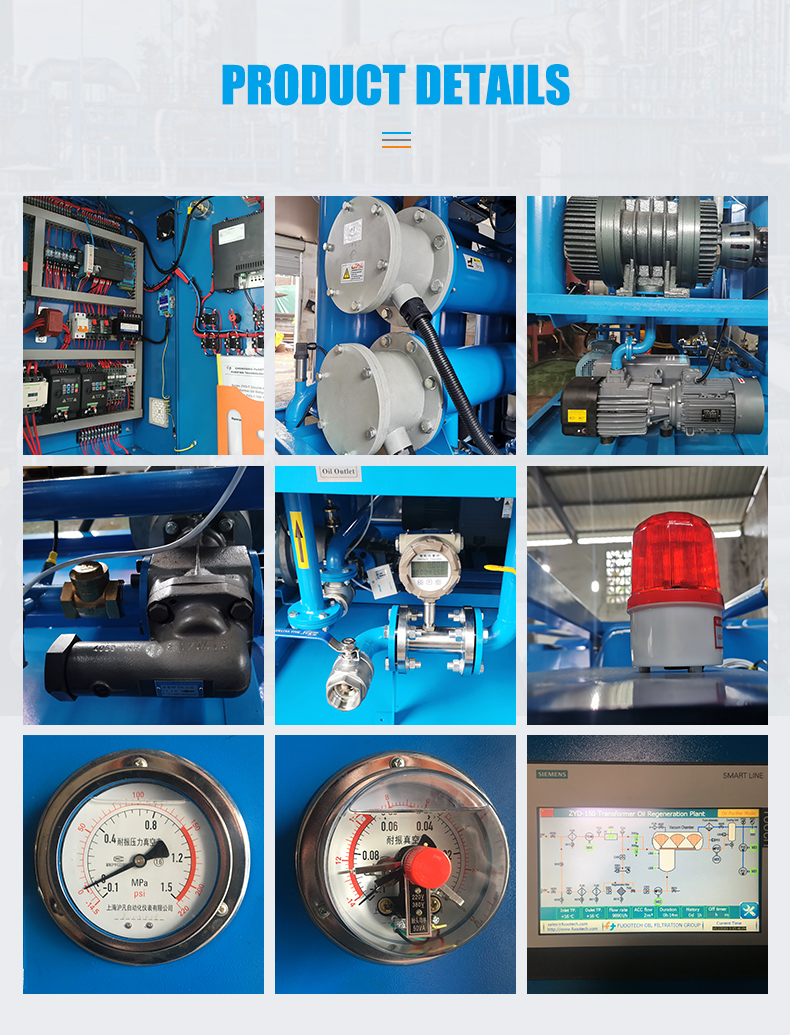

Detailed Photos

Features

■ Elimination of residual gas from the insulation.

■ Drying of transformer insulation.

■ Easy and failsafe operation.

■ On-line measuring and recording of process parameters.

■ Flexibility in application (various oil types and oil volumes)

■ Purify your transformer oil high efficiently

■ Maintain your transformer oil always in good status, extend the oil’s lifespan

■ Reduce and save oil costs in terms of consumption, replacement and inventory

■ Solve your waste transformer oil disposal problem

■ Ensure your transformers working normally with qualified oil properly

■ Protect your transformers and power equipment from oil pollution problems

■ Reduce your maintenance time, energy and cost on transformers and power plant

■ Create safety and cleaning oil-using environment for your transformers of power station

Technical Parameters

Parameters		Model Unit	ZYD-T-O-30	ZYD-T-O-50	ZYD-T-O-100	ZYD-T-O-150	ZYD-T-O-200	ZYD-T-O-250	ZYD-T-O-300
Flow Rate		L/H	1800	3000	6000	9000	12000	15000	18000
Recommended Max Oil Volume in One Storage Tank		Tons	5	12	20	36	55	60	80
Working Vacuum Degree		MPa	-0.08 ～ -0.099
Limit Vacuum Degree		Pa	≤ 20 Pa
Working Discharge Pressure		MPa	≤ 0.4
Temperature Control Range		℃	20 ～ 100
Operation Temperature		℃	40 ~ 65 (60 ~ 65℃ is best)
Power Supply			380V AC, 50Hz, 3 phases, 4 wires (or as per your requirements)
Working hours without Trouble		Hour	4000
Continuous Working Hours		Hour	150
Ambient Temperature		℃	-25 ～ 55
Working Noise		dB(A)	65 ~ 85
Heating Power (adjusted available)		KW	30	60	90	120	135	150	180
Total Power		KW	33	66	98	130	151	168	200
Inlet/Outlet		mm	φ25	φ32	φ42	φ50	φ50	φ60	φ60
Weight		Kg	850	1160	1350	1500	1680	1800	2000
Dimension	Length	mm	1600	1780	1900	2050	2100	2300	2500
	Width	mm	1150	1260	1350	1430	1550	1660	1750
	Height	mm	1780	1830	1900	1960	2060	2100	2250
